Apex APX 14MM35

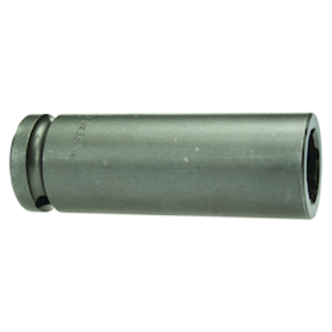

Apex 14MM35 Extra Long Length Socket, 1/2 in Square Drive, 14 mm Hex Socket, 6 Points

Invoice description: Sckt 1/2 Fmale Sq Drv 14 M

UPC: 697099212386
UNSPSC: 27111704
Manufacturer PN: 14MM35
$31.32 EA
Factory Order
QTY:


Apex Socket, Extra Long Length, Impact Rated: Yes, Measurement System: Metric, Square Drive, 1/2 in Drive, Hex Socket, 14 mm Socket, 82.6 mm Overall Length, 11.1 mm Opening Depth, 23.8 mm Drive End Width, 22.2 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated meets or exceeds proof torque requirement for impact standard ASME B107.112
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows Apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

Drive End Width23.8 mm
Drive Size1/2 in
Drive TypeSquare
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth11.1 mm
Overall Length82.6 mm
Socket End Width22.2 mm
Socket Size14 mm
Socket TypeHex
TypeExtra Long Length

Additional Information

Standards/ApprovalASME B107.17, B107.112|DIN 475
Country of OriginUS
