Apex APX 13MM11

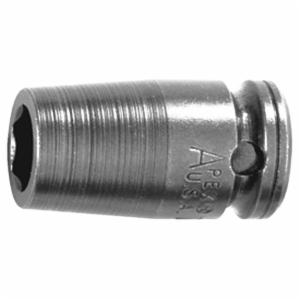

Apex 13MM11 Standard Length Socket, Metric, 1/4 in Female Square Drive, 13 mm Socket, 6 Points

Invoice description: Sckt 1/4 Fmale Sq Drv 13 M

UPC: 697099205432
UNSPSC: 27111704
Manufacturer PN: 13MM11
$17.12 EA
Factory Order
QTY:


Apex Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 1/4 in Drive, 13 mm Socket, 25.4 mm Overall Length, 8.7 mm Opening Depth, 19.1 mm Drive End Width, 19.1 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
Drive End Width19.1 mm
Drive Size1/4 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth8.7 mm
Overall Length25.4 mm
Socket End Width19.1 mm
Socket Size13 mm
TypeStandard Length

Additional Information

Standards/ApprovalASME B107.111
Country of OriginUS
