Apex APX 1118

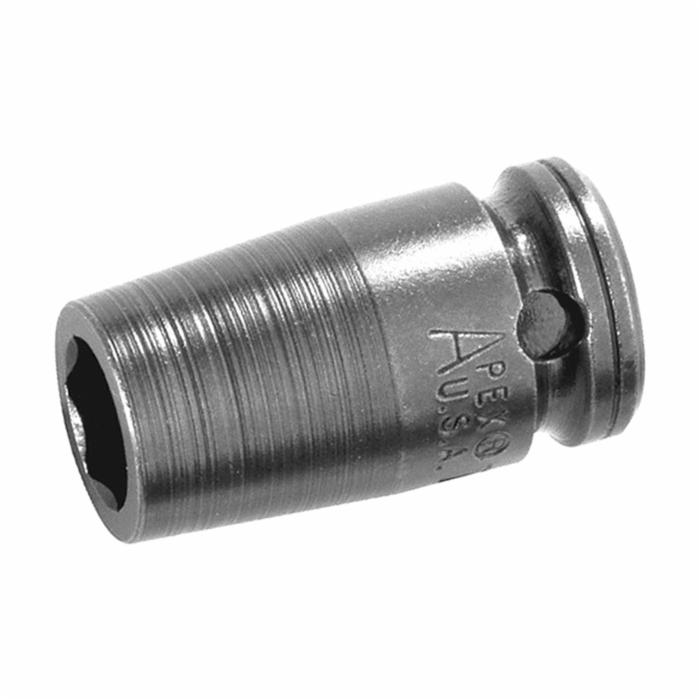

Apex 1118PT Standard Length Socket, Imperial, 1/4 in Female Square Drive, 9/16 in Socket, 6 Points
Invoice description:
Sckt 1/4 Fmale Sq Drv 9/ 1
Factory Order
Apex Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Female Square Drive, 1/4 in Drive, 9/16 in Socket, 1 in Overall Length, 7/16 in Opening Depth, 13/16 in Drive End Width, 13/16 in Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width13/16 in
Drive Size1/4 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemImperial
Number of Points6
Opening Depth7/16 in
Overall Length1 in
Socket End Width13/16 in
Socket Size9/16 in
TypeStandard Length
Additional Information
Standards/ApprovalASME B107.111
Country of OriginUS
