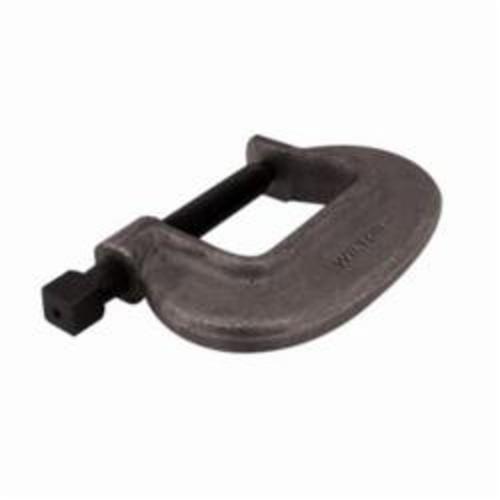

Wilton WILT 14545

Wilton WL9-14545 O Series Extra Heavy Duty C-Clamp, 2-3/8 in D Throat, 0 to 3-3/8 in Clamping, 0 to 3-3/8 in Jaw Opening, 7/8 in Screw

Invoice description: Clamp C Bridge 3-5/16" 3-fc 2-1/2"throat

UPC: 019907145455
UNSPSC: 27112120
Manufacturer PN: WL9-14545
$179.22 EA
Factory Order
Estimated to ship in 7 days
QTY:


Wilton, WL9-14545, C-Clamp, Extra Heavy Duty, Series: O Series, 2-3/8 in Throat Depth, 0 to 3-3/8 in Clamping, 0 to 3-3/8 in Jaw Opening, 7/8 in Screw, 16250 lb Clamping, Forged Steel Body, 7.2 in L x 4.7 in W x 1.1 in H Dimensions

  • Features

  • The full closing, extra heavy duty models are designed to stand up to the demands of heavy industrial applications like those encountered in ship building
  • Hot upset square head on spindle withstands higher torque
  • Square head spindle has large diameter rolled thread and hardened point which provides smoother operation and added strength
  • Black oxide coated spindle resists corrosion
  • Clamping pressure ranging up to 40000 lb
  • Standard c-clamps are used for holding and aligning together multiple workpieces

Specifications

ApplicationBridge Building, Heavy Construction, Heavy Fabrication and Ship Building
Body MaterialForged Steel
Clamping Capacity0 to 3-3/8 in
Clamping Pressure16250 lb
Dimensions7.2 in L x 4.7 in W x 1.1 in H
Jaw Opening0 to 3-3/8 in
Screw Size7/8 in
SeriesO Series
Throat Depth2-3/8 in
TypeExtra Heavy Duty

Additional Information

WarrantyLifetime
Country of OriginTW

Documents
