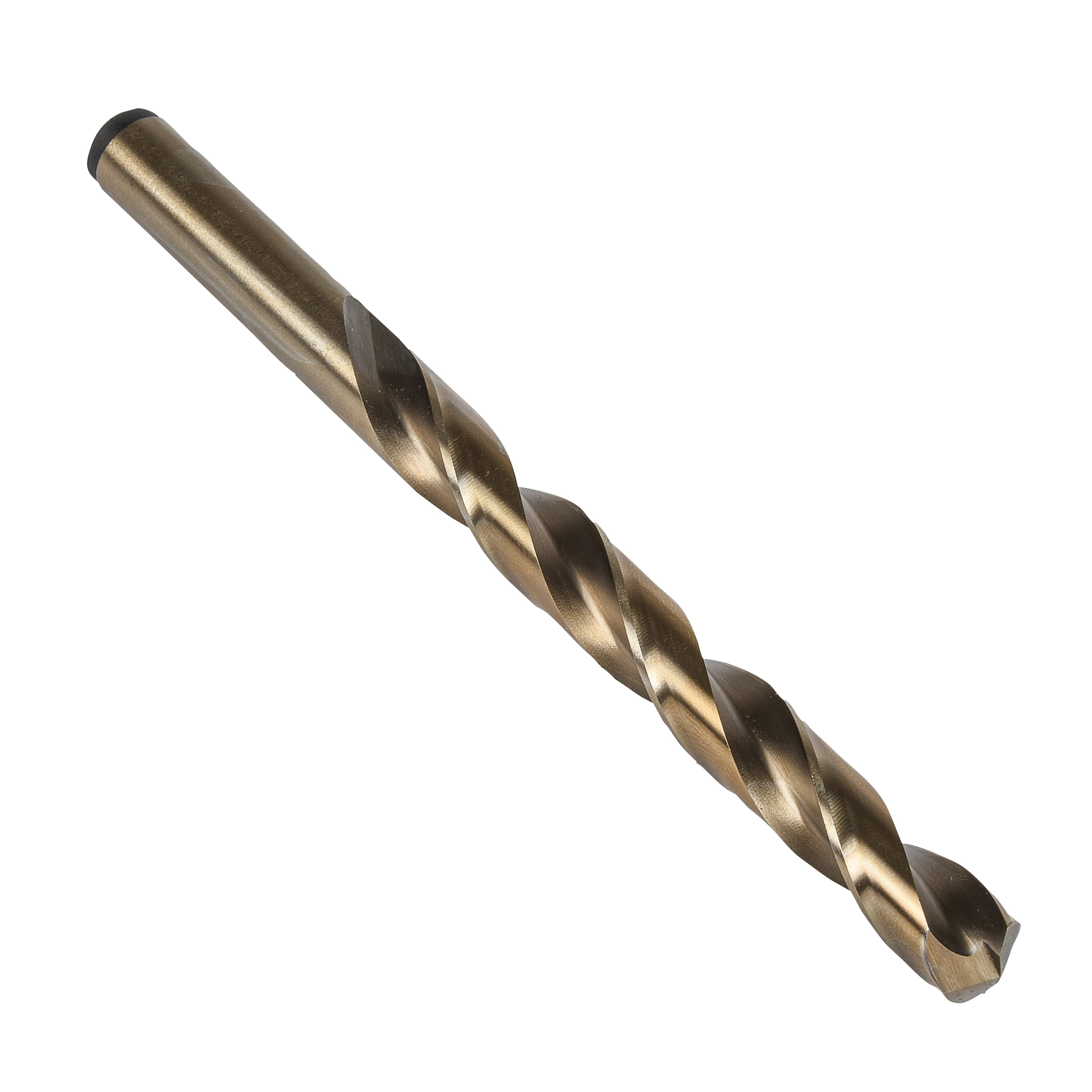

Precision Twist Drill CJD 9/64

Precision Twist Drill 5998234 R10CO Heavy Duty Jobber Length Drill Bit, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, 135 deg Point, HSS-E, Bronze Oxide

Invoice description: 9/64 In Jbr Leng Drl R10co Hss-e Brz 135d R15co Hss-e Bronze 135d Nas907j Jd V 5998234

UPC: 086071103093
UNSPSC: 23241606
Manufacturer PN: 5998234
$2.79 EA
In stock (41)
QTY:


Precision Twist Drill Jobber Length Drill Bit, Heavy Duty, Series: R10CO, Imperial, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, 2-7/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/4 in Flute Length, 9/64 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, No Through Coolant, HSS-E, Bronze Oxide, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze

  • Features

  • Low thrust design self-centering split point for easier penetration
  • Cobalt base material with bronze oxide for wear resistance and lubricity
  • For enhanced tool life in ferrous materials

Specifications

ApplicationFor used with hand held manual drills and either portable or stationary machines
Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-E
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.1406 in
Drill Size - Fraction9/64 in
FinishBronze Oxide
Flute Length1-3/4 in
Flute TypeSpiral
MaterialHSS-E
Number of Flutes2
Overall Length2-7/8 in
Point Angle135 deg
Point TypeSplit/Self-Centering
SeriesR10CO
Shank Size9/64 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeHeavy Duty

Additional Information

Standards/ApprovalANSI Specified|NAS 907 Type J|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginBR
