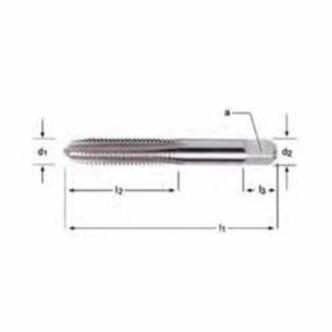

Union Butterfield UTD 1700MB 20X2.50
Union Butterfield 6008866 1700M General Purpose Straight Flute Hand Tap, Right Hand Cutting, M20x2.5 Thread, D7 Thread Limit, Bottoming Chamfer, 4 Flutes, Bright, HSS
Invoice description:
M20 X 2.5p 6h 1700m Hss Brt Hand Tap 1700m Hss Brt M22 X 2.50 Mm 6008866
UPC: 698464036255
UNSPSC:
23241615
Manufacturer PN: 6008866
$90.52 EA
Factory OrderEstimated to ship in 7 days
Union Butterfield Straight Flute Hand Tap, General Purpose, Series: 1700M, Measurement System: Metric, Coarse, M20x2.5, Bottoming Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 6H, Right Hand Cutting, 2 in Thread Length, 4-15/32 in Overall Length, 0.652 in Shank Dia, Steel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application, D7 Thread Limit
Features
- The most versatile taps for hand use or machine tapping in a wide variety of materials in through or blind hole applications
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through or blind hole applications
Chamfer TypeBottoming
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials
Measurement SystemMetric
Number of Flutes4
Overall Length4-15/32 in
Series1700M
Shank Diameter0.652 in
Thread Length2 in
Thread LimitD7
Thread SizeM20x2.5
Thread StandardCoarse
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
