Union Butterfield UTD 1585P 7/16-14

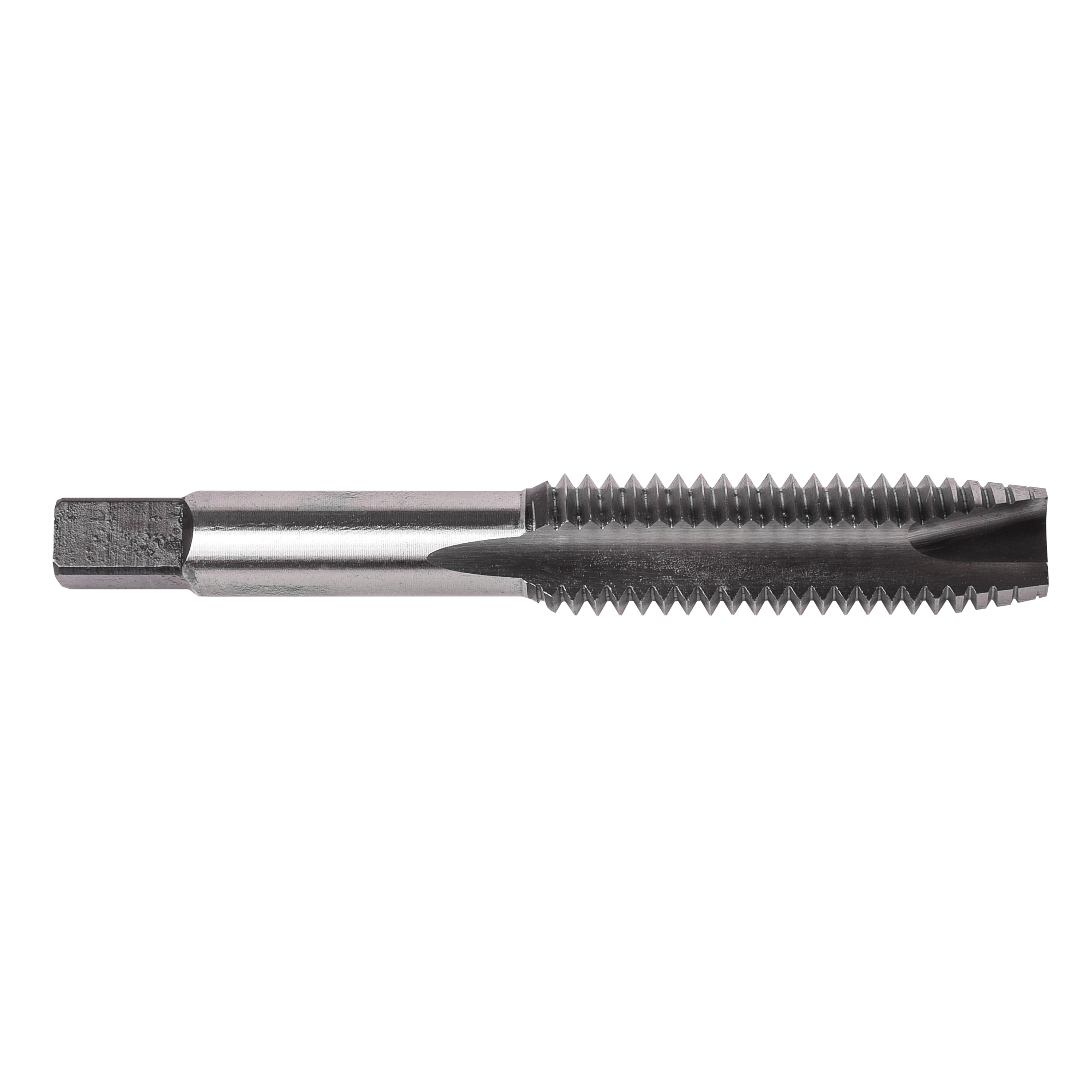

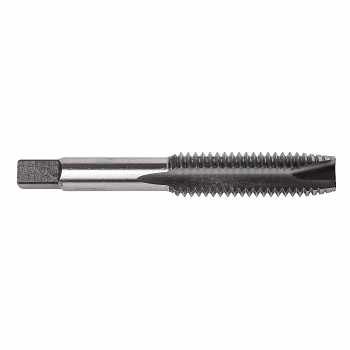

Union Butterfield 6007327 1585 Relieved Spiral Point Machine Tap, Right Hand Cutting, 7/16-14 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Bright, HSS
Invoice description:
7/16in X 14 Tpi H3 3 Flt 1585 Hss Brt Unc Tap 1700m Hss Brt M12 X 1.75 Mm 6007327
In stock
(1)
Union Butterfield Spiral Point Machine Tap, Relieved, Series: 1585, Measurement System: Imperial, UNC Thread Standard, 7/16-14 Thread, Plug Chamfer, 3 Flutes, HSS, Bright, Class of Fit: 3B, Right Hand Cutting Direction, 1-7/16 in Thread Length, 3-5/32 in Overall Length, 0.323 in Shank Diameter, Steel, Stainless Steel, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit
Features
- Spiral point taps are used to solve the problem of tap breakage in through hole tapping in a wide variety of materials
- The angular flutes in the cutting face propel the chips ahead of the cutting zone, thus reducing loading and clogging in the flutes
- These taps are extremely free cutting, resulting in longer tool life
- Bright finish flutes improve chip flow in soft and non-ferrous materials
Specifications
ApplicationFor through hole applications
Chamfer TypePlug
Class of Fit3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Stainless Steel, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Measurement SystemImperial
Number of Flutes3
Overall Length3-5/32 in
Series1585
Shank Diameter0.323 in
Thread Length1-7/16 in
Thread LimitH3
Thread Size7/16-14
Thread StandardUNC
TypeRelieved
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
