TECHNIKS TECN 04225-7/32

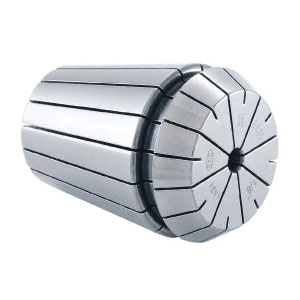

TECHNIKS 04225-7/32 Precision Single Angle Collet With Coolant Through, ER25, 1.34 in OAL, 0.1794 to 0.2188 in Capacity, 1.34 in L Clamping Hole, 1.02 in Dia Body, 1.02 in Dia Head
Invoice description:
Collet Er 25 7/32
In stock
(2)
TECHNIKS Collet, Precision Single Angle, ER25, 1.02 in Body Dia, 1.02 in Head Dia, 1.34 in Overall Length, 0.1794 to 0.2188 in, 1.34 in Clamping Hole Length, For Use With: DR, RD, ESX and AR Series Collet Chuck
Features
- Precision collets have at most 0.0002 in T.I.R. as a standard quality guarantee
- Made from high carbon bearing steel and heat treated for improved flexibility and longer life
- For best results, use with a PowerCOAT nut to improve holding power and extend tool life
Specifications
Body Diameter1.02 in
Capacity0.1794 to 0.2188 in
Clamping Hole Length1.34 in
Head Diameter1.02 in
Overall Length1.34 in
SizeER25
Suitable For Use WithDR, RD, ESX and AR Series Collet Chuck
TypePrecision Single Angle
Additional Information
Country of OriginTW
