TECHNIKS TECN 04220-5/16

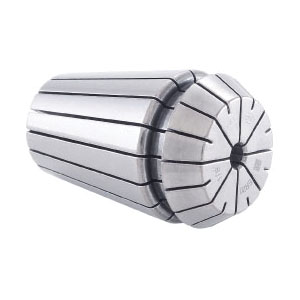

TECHNIKS 04220-5/16 Precision Single Angle Spring Collet With Coolant Through, ER20, 1.24 in OAL, 0.2731 to 0.3125 in Capacity, 1.24 in L Clamping Hole, 0.83 in Dia Body, 0.83 in Dia Head
Invoice description:
Collet Er 20 5/16
In stock
(1)
TECHNIKS Spring Collet, Precision Single Angle, ER20, 0.83 in Body Dia, 0.83 in Head Dia, 1.24 in Overall Length, 0.2731 to 0.3125 in, 1.24 in Clamping Hole Length, For Use With: ER, DR, RD, ESX, AR and BR Collet Chuck
Features
- At most 0.0002 in T.I.R. as a standard quality guarantee
- For use with PowerCOAT nut to improve holding power and extend tool life
Specifications
Body Diameter0.83 in
Capacity0.2731 to 0.3125 in
Clamping Hole Length1.24 in
Head Diameter0.83 in
Overall Length1.24 in
SizeER20
Suitable For Use WithER, DR, RD, ESX, AR and BR Collet Chuck
TypePrecision Single Angle
Additional Information
Country of OriginTW
