Corehog COREHOG C54478

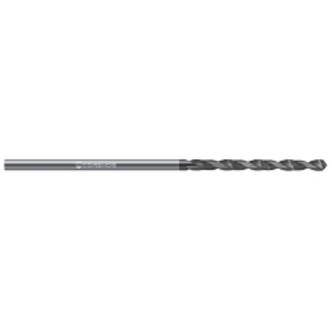

Corehog C54478 Facet Drills, 1/4 Drill - Fraction, 0.25 in Drill - Decimal Inch, 118 deg Point Angle, Uncoated
Invoice description:
0.2500" (1/4) Drill Dia 1.500" Crb 2flt Dlc Coat
Manufacturer PN: C54478
$147.76 EACH
Factory OrderEstimated to ship in 7 days
Corehog, C54478, Drills, Facet, Imperial, 1/4 Drill - Fraction, 0.25 in Drill - Decimal Inch, 4 in Overall Length, 2 Flutes, Helical Flute, 1.5 in Flute Length, 0.25 in Shank, Cylindrical Shank, 118 deg Point, Drill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Through Coolant (Yes/No): No, Uncoated
Features
- 8 Facet design efficiently spreads out tool pressure throughout the cut, reducing delamination on exit
- High strength design maximizes MRR
- Suitable for use in a wide range of composites and plastics
- DLC coating for improved lubricity and wear resistance
- True crystalline CVD diamond coating for drastically improved hardness for outstanding abrasion resistance and higher feed rates
- Solid Carbide
Specifications
ApplicationDesigned for routing fiber reinforced, epoxy resin and composites
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.25 in
Drill Size - Fraction1/4
FinishUncoated
Flute Length1.5 in
Flute TypeHelical
MaterialSolid Carbide
Number of Flutes2
Overall Length4 in
Point Angle118 deg
Point TypeDrill
Shank Size0.25 in
Shank TypeCylindrical
Through Coolant (Yes/No)No
TypeFacet
Additional Information
Country of OriginUS
