Sandvik Coromant SANC 5727881

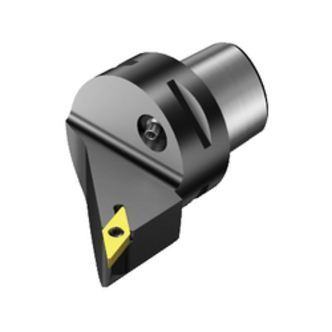

Sandvik Coromant 5727881 CoroTurn 107 Modular Turning Cutting Unit, C4 System, 50 mm L Head/Projection, Right Hand Cutting, Insert Compatibility: VBMT 160408, VCMT 160408, 74 mm OAL, External
Invoice description:
Hldr C4-svhbr-27050-16
Factory Order
Sandvik Coromant Turning Cutting Unit, Modular, Series: CoroTurn 107, System Size: C4, 50 mm Head Length/Projection, 74 mm Overall Length, VBMT/VCMT Insert, Insert Compatibility: VBMT 160408, VCMT 160408, Right Hand Cutting Direction, 27 mm Center to Cutting Edge, Screw Clamp Insert Holding Method, External, Steel
Features
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Holders with conventional and precision coolant design
Specifications
ApplicationLongitudinal Turning, Profiling, Boring Holes and Facing
Center to Cutting Edge27 mm
Cutting DirectionRight Hand
Head Length/Projection50 mm
Insert CompatibilityVBMT 160408, VCMT 160408
Insert Holding MethodScrew Clamp
Insert StyleVBMT/VCMT
Internal or ExternalExternal
MaterialSteel
Overall Length74 mm
SeriesCoroTurn 107
System SizeC4
TypeModular
Additional Information
Includes5762515 Shim, 5763097 Shim Screw, 5763189 Screw, 5764130 Key and 5764297 Nozzle
Country of OriginSE
