Sandvik Coromant SANC 5727732

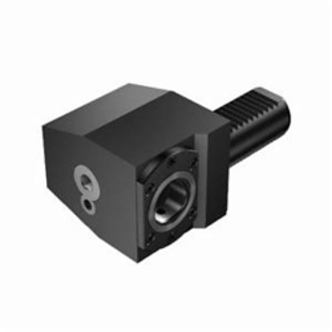

Sandvik Coromant 5727732 Mechanical Right Hand Clamping Unit, VDI x Coromant Capto Shank, C4 Workpiece Side, 1.5748 in Arbor/Shank, 3.3858 in Dia Body, 5.433 in OAL
Invoice description:
Vdi To Capto Clamping Unit C4-rc2040-51030m
Factory Order
Sandvik Coromant Clamping Unit, Mechanical Right Hand, 1.5748 in Arbor/Shank, 3.3858 in Diameter Body, 2.0078 in Gage Length, 5.433 in Overall Length, 3.3858 in Overall Width, 1.496 in Centerline Height, ANSI Code: C4-RC2040-51030M, ISO Code: C4-RC2040-51030M, VDI x Coromant Capto Shank, C4 System Size Workpiece Side
Features
- 90 deg body
- Decentral over flange coolant
- 80 bar coolant
- Radial coolant exit
- 54 mm H body
- 75 mm L protruding
- 63 mm L dead shank
- 51 mm overhang
- 50 Nm torque
- Cx-R/LC20xxA tool style
Specifications
ANSI CodeC4-RC2040-51030M
Arbor/Shank Size1.5748 in
Body Diameter3.3858 in
Centerline Height1.496 in
Gage Length2.0078 in
ISO CodeC4-RC2040-51030M
Overall Length5.433 in
Overall Width3.3858 in
Shank TypeVDI x Coromant Capto
System Size Workpiece SideC4
TypeMechanical Right Hand
Additional Information
Includes5723097 Torque Wrench, 5758315 Parallel Pin, 5758519 Screw, 5759062 Plain Bearing, 5761129 Screw, 5762254 Sleeve, 5762716 Cam Shaft, 5762959 Draw Bar Set, 5763162 Screw, 5763517 Locking Washer, 5763759 Compression Spring, 5763868 Plain Bearing and 5764081
Country of OriginJP
