Sandvik Coromant SANC 5723039

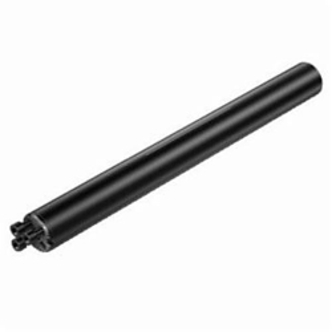

Sandvik Coromant 5723039 Dampened Boring Bar Adapter, 1-1/8 in Dia Shank, Shank Connection, 1-1/4 in Body Dia Workpiece Side, ISO Code: A570-3C D20 12-32

UNSPSC:
Manufacturer PN: 5723039
$707.50 EA
Factory Order
Estimated to ship in 7 days
QTY:


Sandvik Coromant Boring Bar Adapter, Dampened, Series: 63 Series, Shank, 12.48 in Overall Length, 7.48 in Gage Length, 1-1/8 in Shank Dia, 1.26 in Shank Dia Workpiece Side, 1-1/4 in Body Dia Workpiece Side, 7.48 in Usable Length, ISO Code: A570-3C D20 12-32, ANSI Code: A570-3C D20 12-32, Steel

  • Features

  • The ingenious Serration Lock (SL) interface is extremely robust and lets you create a wide range of tool combinations from a small inventory of adapters and cutting heads
  • The high precision nozzles on the cutting heads put coolant exactly where you need it, for good chip breaking and long tool life
  • Tool wear is mainly on the exchangeable cutting head, extending the life of the adapter

Specifications

ANSI CodeA570-3C D20 12-32
Body Diameter Workpiece Side1-1/4 in
Connection TypeShank
Gage Length7.48 in
ISO CodeA570-3C D20 12-32
MaterialSteel
Overall Length12.48 in
Shank Diameter1-1/8 in
Shank Diameter Workpiece Side1.26 in
TypeDampened
Usable Length7.48 in
