Campbell CAM 0140323

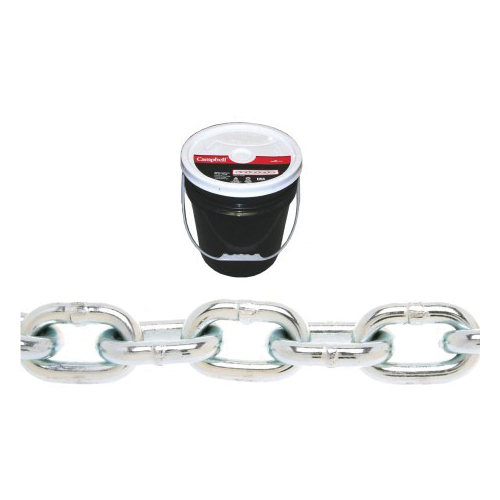

Campbell T0140323 System 3 Welded Proof Coil Chain, Single Loop/Straight Link, 3/16 in Trade, 30 Grade, 250 ft L, 800 lb Load

Invoice description: Chain Proof Coil 3/16" Blue-krome 250'/dr

UPC: 020418057991
UNSPSC: 31151604
Manufacturer PN: T0140323
$1.48 FT
In stock (35)
QTY:


Campbell Proof Coil Chain, Welded, Series: System 3, Single Loop/Straight Link, 30 Grade, 3/16 in, 250 ft Length, 800 lb, Low Carbon Steel, Zinc Plated

  • Features

  • Excellent low carbon steel chain for general purpose applications
  • Hallmarking - "C3" and "USA" on 5/16 in and larger
  • Proof tested
  • 4:1 design factor
  • Do not use for overhead lifting
  • Do not exceed the working load limit

Specifications

ApplicationFabricating Tow Chains, Binding and Logging Chains, Marine and Other General Applications
FinishZinc Plated
Grade30
Length250 ft
Link TypeSingle Loop/Straight
Load Capacity800 lb
MaterialLow Carbon Steel
SeriesSystem 3
Trade Size3/16 in
TypeWelded

Additional Information

WarrantyLifetime Limited
Standards/ApprovalDNV Approved|ANSI Specified|CSA Approved
Country of OriginUS
