DeWALT PWRS PFM1411840

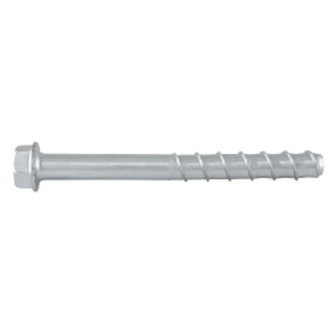

DeWALT Screw-Bolt+ PFM1411840 High Performance Screw Anchor, 3/4 in Dia, 8 in OAL, Hex Head Drive, Steel, 2-1/2 in D Min Embedment

Invoice description: Anchor Screw 3/4"x8" 10/bx Hex Washer

UPC: 075352305172

UNSPSC: 31162104

Manufacturer PN: PFM1411840

^$102.38 BX

In stock (2)

enlarge

Product Overview

DeWALT Screw-Bolt+ Screw Anchor, High Performance, 3/4 in Diameter, 8 in Overall Length, Hex Head Drive, Steel, 2-1/2 in Minimum Embedment Depth, 3/4 in Drill, Zinc Plated, Applicable Materials: Normal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick, 1-1/8 in Head, 5-1/2 in Maximum Work Thickness, 11615/12725/14690/17995/20775 lb Shear Strength, 6035/6610/7635/9350 lb Tensile Strength

Features
Designed for standard ANSI tolerance drill bits
Tough threads for tapping high strength concrete
Can be installed closer to the edge than traditional expansion anchors
Fast installation with powered impact wrench
1-piece, finished head design
Patented thread design offers low installation torque
Ratchet teeth on underside of hex washer head lock against the fixture
Fully removable and re-installable in same hole
Diameter, length and identifying marking stamped on head of each anchor
11615/12725/14690/17995/20775 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete shear strength

Specifications

ApplicationRacking, Shelving and Material Handling, Support Ledgers and Sill Plate Attachments, Temporary Attachments, Glazing and Window Attachments, Retrofits, Repairs and Maintenance, Fencing and Railing, Seismic and Wind Applications

Applicable MaterialsNormal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick

Diameter3/4 in

Drill Size3/4 in

FinishZinc Plated

Head Drive TypeHex

Head Size1-1/8 in

MaterialSteel

Maximum Work Thickness5-1/2 in

Minimum Embedment Depth2-1/2 in

Overall Length8 in

Shear Strength11615/12725/14690/17995/20775 lb

Tensile Strength6035/6610/7635/9350 lb
