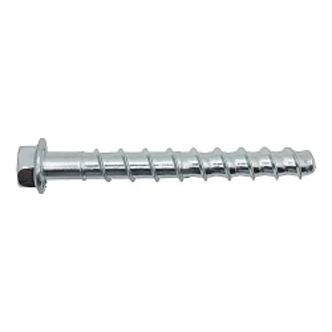

DeWALT PWRS PFM1411760

DeWALT Screw-Bolt PFM1411760 1-Piece Heavy Duty High Performance Screw Anchor, 3/4 in Dia, 5 in OAL, Hex Washer Head Drive, Carbon Steel, 2-1/2 in D Min Embedment

Invoice description: Anchor Screw 3/4"x5" 20/bx Hex Washer

UPC: 075352305158

UNSPSC: 31161526

Manufacturer PN: PFM1411760

^$123.82 BX

In stock (5)

enlarge

Product Overview

DeWALT Screw-Bolt Screw Anchor, 1-Piece Heavy Duty High Performance, 3/4 in Diameter, 5 in Overall Length, Hex Washer Head Drive, Carbon Steel, 2-1/2 in Minimum Embedment Depth, 3/4 in Drill, Zinc Plated, Applicable Materials: Brick Masonry, Concrete Over Steel Deck, Grouted Concrete Masonry, Lightweight Concrete and Normal Weight Concrete, 43/64 in H Head

Features
Designed for standard ANSI tolerance drill bits
Low installation torque in concrete and masonry
Ratchet teeth on underside of hex washer head lock against the fixture
Fully removable and reinstallable in same hole
Diameter, length and identifying marking stamped on head of each anchor
Patented thread design offers toughened threads for tapping high strength concrete
Universal product for concrete and grouted/solid masonry
Can be installed closer to a free edge than traditional expansion anchors
Fast installation with powered impact wrench, but can also be installed manually
1-piece, finished head design

Specifications

ApplicationRacking, Shelving and Material Handling, Barriers, Guards and Temporary Support, Retrofits, Repairs and Maintenance, Cracked and Uncracked Concrete, Support Ledgers and Sill Plate Attachments, Glazing and Window Attachments, Fencing and Railing and Seismic and Wind Loading

Applicable MaterialsBrick Masonry, Concrete Over Steel Deck, Grouted Concrete Masonry, Lightweight Concrete and Normal Weight Concrete

Diameter3/4 in

Drill Size3/4 in

FinishZinc Plated

Head Drive TypeHex Washer

Head Size43/64 in H

MaterialCarbon Steel

Minimum Embedment Depth2-1/2 in

Overall Length5 in

Type1-Piece Heavy Duty High Performance
