Sandvik Coromant SANC 5732318

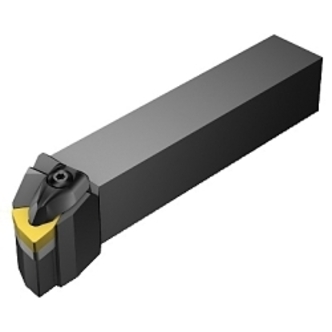

Sandvik Coromant 5732318 T-Max P Turning Shank Tool, ANSI Code: DWLNL 12 3C, DWLNR/L Tool Holder, WNMG 06 04 08 Insert, Left Hand Cutting, 3/4 in H x 3/4 in W Rectangle Shank, -5 deg Lead Angle, -6 deg Rake, 5 in OAL
Invoice description:
Hldr Dwlnl 12 3c Rc Clmp
Factory Order
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DWLNR/L Tool Holder, 5 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: WNMG 06 04 08, 43167 Insert Seat, Left Hand Cutting Direction, -5 deg Lead Angle, ANSI Code: DWLNL 12 3C, ISO Code: DWLNL 12 3C, -6 deg Rake, Steel
Features
- 0 deg body machine side
- 20 life cycle state
- 0 deg body workpiece side
- Without coolant entry
- Floating wedge, RC hole
- No coolant exit
- 95 deg cutting edge
- -6 deg inclination
- 49.53 mm maximum overhang
- 0 deg ramping
Specifications
ANSI CodeDWLNL 12 3C
Cutting DirectionLeft Hand
Insert CompatibilityWNMG 06 04 08
Insert Seat Size43167
ISO CodeDWLNL 12 3C
Lead Angle-5 deg
MaterialSteel
Overall Length5 in
Rake-6 deg
SeriesT-Max P
Shank Size3/4 in H x 3/4 in W
Shank TypeRectangle
Tool Holder StyleDWLNR/L
Additional Information
Country of OriginSE
