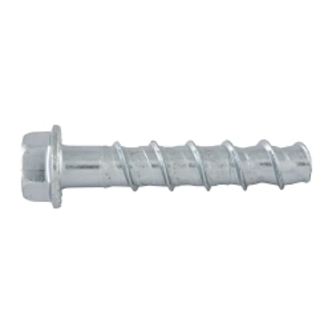

DeWALT PWRS PFM1411380

DeWALT Screw-Bolt+ PFM1411380 High Performance Screw Anchor, 1/2 in Dia, 3 in OAL, Hex Head Drive, Steel, 1-3/4 in D Min Embedment

Invoice description: Anchor Screw 1/2"x3" 50/bx Hex Washer

UPC: 075352305035
UNSPSC: 31162104
Manufacturer PN: PFM1411380
$101.00 BX
Factory Order
Estimated to ship in 7 days
QTY:


DeWALT Screw-Bolt+ Screw Anchor, High Performance, 1/2 in Diameter, 3 in Overall Length, Hex Head Drive, Steel, 1-3/4 in Minimum Embedment Depth, 1/2 in Drill, Zinc Plated, Applicable Materials: Normal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick, 3/4 in Head, 1-1/4 in Maximum Work Thickness, 5985/6555/7570/9270/10705 lb Shear Strength, 2840/3115/3595/4400 lb Tensile Strength

  • Features

  • Designed for standard ANSI tolerance drill bits
  • Tough threads for tapping high strength concrete
  • Can be installed closer to the edge than traditional expansion anchors
  • Fast installation with powered impact wrench
  • 1-piece, finished head design
  • Patented thread design offers low installation torque
  • Ratchet teeth on underside of hex washer head lock against the fixture
  • Fully removable and re-installable in same hole
  • Diameter, length and identifying marking stamped on head of each anchor
  • 5985/6555/7570/9270/10705 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete shear strength

Specifications

ApplicationRacking, Shelving and Material Handling, Support Ledgers and Sill Plate Attachments, Temporary Attachments, Glazing and Window Attachments, Retrofits, Repairs and Maintenance, Fencing and Railing, Seismic and Wind Applications
Applicable MaterialsNormal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick
Diameter1/2 in
Drill Size1/2 in
FinishZinc Plated
Head Drive TypeHex
Head Size3/4 in
MaterialSteel
Maximum Work Thickness1-1/4 in
Minimum Embedment Depth1-3/4 in
Overall Length3 in
Shear Strength5985/6555/7570/9270/10705 lb
Tensile Strength2840/3115/3595/4400 lb
TypeHigh Performance

Additional Information

Standards/ApprovalICC-ES ESR-3889|ICC-ES ESR-4042|2015 IBC|2015 IRC|
