Sandvik Coromant SANC 5753112

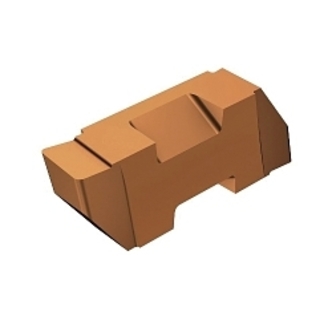

Sandvik Coromant 5753112 Top-Lok Grooving Insert, ANSI Code: TLGP-2062L 1125, TLGP Insert, 2 Insert, Left Hand Cutting, 0.062 in W Cutting, Manufacturers Grade: 1125, PVD-TiCrAlN+TiAlN Coated, Material Grade: K, M, P, S
Invoice description:
Ins Tlgp-2062l 1125
Factory Order
Sandvik Coromant Grooving Insert, Series: Top-Lok, TLGP Insert, 2 Insert, 0.062 in Cutting Width, 0.11 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, Positive Rake, 0.219 in Thickness, 0.344 in Length, Manufacturers Grade: 1125, ANSI Code: TLGP-2062L 1125, ISO Code: TLGP-2062L 1125, Left Hand Cutting, Carbide, PVD-TiCrAlN+TiAlN Coated, Material Grade: K, M, P, S
Features
- Multiply operations with the same holder by just changing insert
- Double ended inserts provide high edge security
- Interchangeable with similar clamping systems by changing the top clamp and screw
Specifications
ApplicationProfiling and Threading
ANSI CodeTLGP-2062L 1125
Corner Radius0.008 in
Cutting DirectionLeft Hand
Cutting Width0.062 in
FinishPVD-TiCrAlN+TiAlN Coated
Insert Size2
Insert StyleTLGP
ISO CodeTLGP-2062L 1125
Lead Angle0 deg
Length0.344 in
Manufacturers Grade1125
MaterialCarbide
Material GradeK, M, P, S
Maximum Depth of Cut0.11 in
RakePositive
SeriesTop-Lok
Thickness0.219 in
Additional Information
Country of OriginUS
