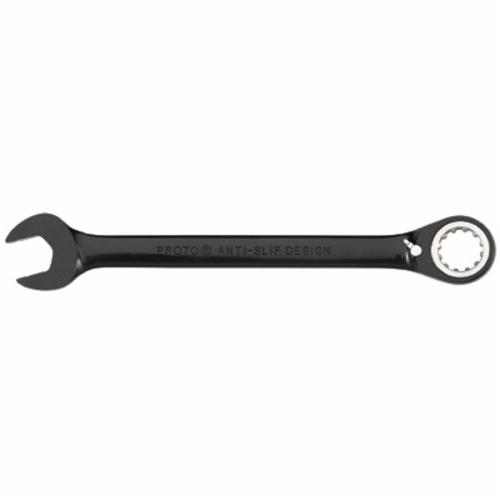

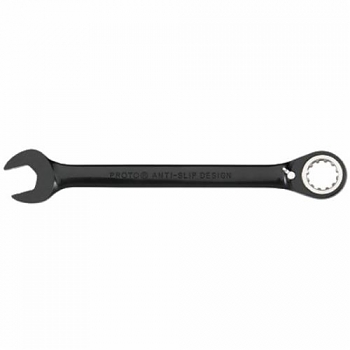

Proto PRO JSCV14

Proto Combination Wrench, Reversible, Measurement System: Imperial, Ratcheting/Spline Wrench, 7/16 in Wrench Opening, 12 Points, 72 Geared Teeth, 6-1/2 in Overall Length, 15 deg Offset, 15/16 in Open End Width, 1/8 in Open End Thickness, 55/64 in Box End Width, 1/8 in Box End Thickness, Specifications Met: ASME Specified, Chrome Vanadium Steel, Polished Chrome/Black

• Features

• The chrome-vanadium switch lever allows for easy changes in turning direction which helps improve speed
• 15 deg angled offset box end helps keep shank clear of obstructions
• Anti-Slip Design (ASD) open end
• Fractional spline wrenches can be used on fractional 4, 6, 12 point spline and Torx fasteners
• Box end is countersunk for easy application to the fastener
• Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
• The high contact surface area which is away from fastener points enables turning of highly rounded fasteners
• Chrome vanadium box ends and switch levers provide high strength and durability
• Feature a spline ratcheting end to turn multiple fasteners while helping increase the force applied to the fastener
• Spline tools engage the flats of conventional nut fasteners to move the loads away from the corner of the fastener and transfer them over a broader surface area
