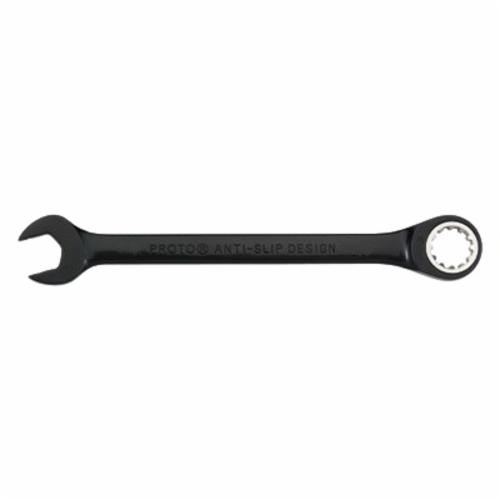

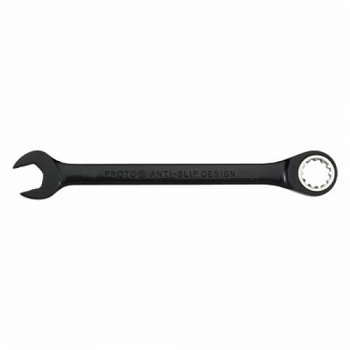

Proto PRO JSCR18

Proto Combination Wrench, Non-Reversible, Measurement System: Imperial, Ratcheting/Spline Wrench, 9/16 in Wrench Opening, 12 Points, 72 Geared Teeth, 7-1/2 in Overall Length, 15 deg Offset, 1-1/8 in Open End Width, 3/16 in Open End Thickness, 1-1/16 in Box End Width, 3/16 in Box End Thickness, ASME Specified Specifications Met, Chrome Vanadium Steel, Polished Chrome/Black

• Features

• Fractional spline wrenches can be used on fractional 4, 6, 12 point, spline and Torx fasteners
• Chrome vanadium box ends and switch levers provide high strength and durability
• Box end is countersunk for easy application to the fastener
• Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
• Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
• The high contact surface area which is away from fastener points enables turning of highly rounded fasteners
• Anti-slip design (ASD) open end
• Black chrome finish is corrosion-resistant and visually distinctive

Specifications

Additional Information

Documents

• Catalog
