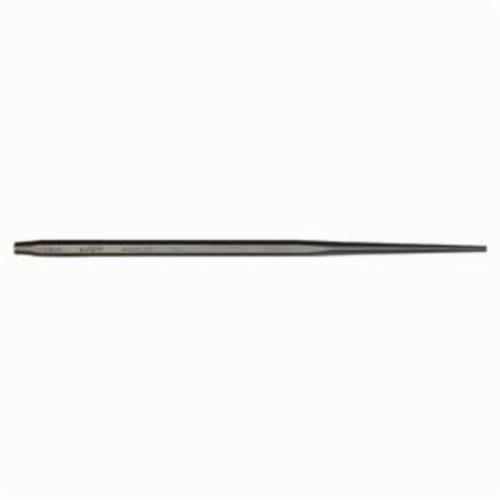

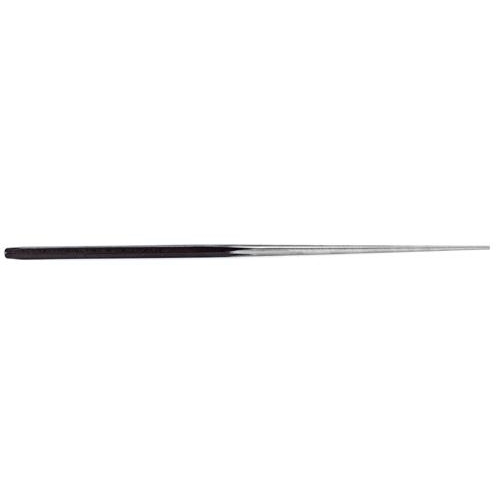

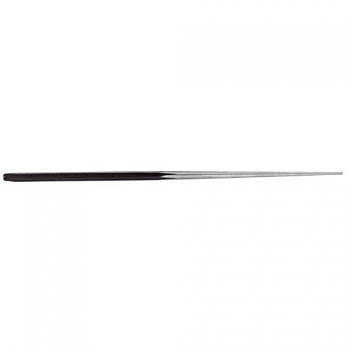

Proto PRO J963/8

Proto J963/8 1-Piece Drift Punch, 3/16 in Parabolic, 10-1/8 in OAL, Steel

Invoice description: Punch Drift 10" 3/16"tip

UPC: 662679010317
UNSPSC: 27111505
Manufacturer PN: J963/8
$16.07 EA
Factory Order
Estimated to ship in 10 days
QTY:


Proto Drift Punch, 1-Piece, 10-1/8 in Overall Length, 3/16 in Punch, Parabolic, Steel, Black

  • Features

  • 1-piece design for strength and durability
  • Reverse taper to help prevent binding
  • Modified parabolic striking end to help reduce mushrooming and chipping
  • Made from S2 steel and specially heat treated for greater strength and durability
  • Black oxide finish to help prevent rust corrosion, extending tool life and performance
  • A polished identification panel on one of the flats is marked with the tool number and size in a black inlay
  • To aligning holes in two or more pieces of metal through which a bolt or screw is to be inserted
  • 3/8 in W tip

Specifications

ApplicationFor installing and removing pins and shafts, used to align holes in two or more pieces of metal through which a bolt or screw is to be inserted
ColorBlack
MaterialSteel
Overall Length10-1/8 in
Punch Size3/16 in
Punch TypeParabolic
Type1-Piece

Additional Information

Standards/ApprovalASME B107.48
Country of OriginUS
