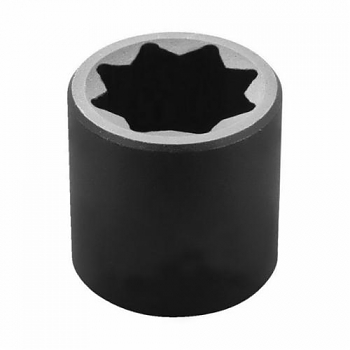

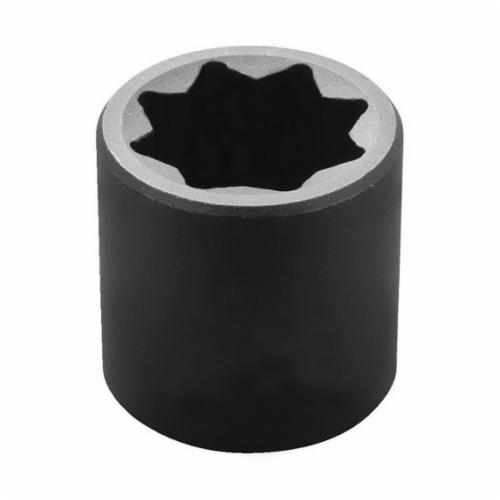

Proto PRO J7424S

Proto TorquePlus Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 3/4 in Socket, 1-1/2 in Overall Length, 27/32 in Opening Depth, 1-11/32 in Drive End Width, 1-11/32 in Socket End Width, Side Locking Hole Locking, 8 Points, 27/32 in Bolt Clearance Depth, Alloy Steel, Black Oxide

• Features

• Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
• Tight tolerances for snug fit on fastener
• Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
• Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
• Impact sockets are used wherever powered drive tools are used to install or remove fasteners
• Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
• The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
• Socket size stamped on tool for easy identification
