Sandvik Coromant SANC 5765750

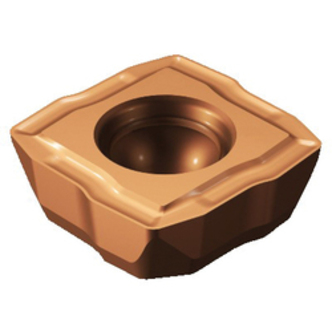

Sandvik Coromant Drilling Insert, Series: CoroDrill 880, 880..C-LM Insert, 60406 Insert, Squared, 0.4015 in Inscribed Circle, 0.1377 in Thickness, LM Chipbreaker, 0.0236 in Corner Radius, 0.1574 in Hole Dia, Manufacturers Grade: 1044, ANSI Code: 880-06 04 06H-C-LM 1044, Right Hand, ISO Code: 880-06 04 06H-C-LM 1044, Asymmetrical Point, Medium Feed, For Use On: Heat Resistant Materials, Non-Ferrous Metals, Steel, Stainless Steel and Super Alloys, Carbide, PVD-TiAlN Coated, Material Grade: M, N, P, S

• Features

• Wiper geometry for best surface finish or higher feed possibilities
• Optimized chip channels for accelerated chip evacuation
• Easy identification due to laser marking with drill-, insert- and screw codes on the drill shank
• Two or four cutting edges depending on drill diameter
• Optimized geometries assure high performance in most materials
• Optimized grades assure longer insert tool life
• Entering the workpiece with an assymetrical drill by default generates an unbalance
• Step technology provide a step-by-step entry with lower cutting forces, and therefore enable a higher productivity as well as close hole tolerances
• Inserts and geometries, available for all materials and applications, provide high productivity and extended tool life
• With CoroDrill 880, you can do more than just drilling a hole

Specifications

Documents

• Sds
