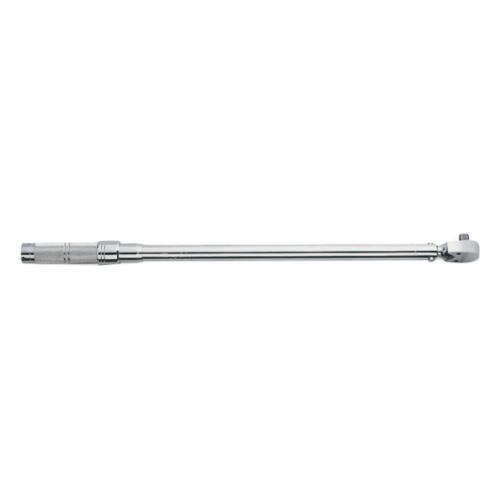

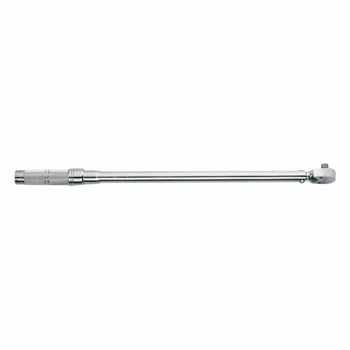

Proto PRO J6066C
Proto J6066C C Series Micrometer Torque Wrench, 3/8 in Drive, 200 to 1000 in-lb, Ratcheting Head, 5 in-lb Graduation, 15-1/2 in OAL, ASME B107.300-2010, TO33K6-4-2193-1
Invoice description:
Wrench Torque 3/8 Dr 100 -10 0-1000 In Lb
UPC: 662679136093
UNSPSC:
27111715
Manufacturer PN: J6066C
$310.66 EA
Factory OrderEstimated to ship in 16 days
Proto Micrometer Torque Wrench, Series: C Series, 3/8 in Drive, 200 to 1000 in-lb, Head Ratcheting, Graduations: 5 in-lb, 15-1/2 in Overall Length, CW/CCW Rotation, +/-3% CW, +/-6% CCW Accuracy, Setting: Automatic Reset, 50000 Cycles Minimum, Audible Click Indicator, Knurled/Screw-On End Cap Handle, Specifications Met: ASME B107.300-2010, TO33K6-4-2193-1, Steel, Full Polished
Features
- Calibrated to +/-4% clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- This Proto torque wrench is made from high grade steel for strength and durability
- Thin head design to allow access in tight areas
- For strength and durability
Specifications
ApplicationMilitary and Aerospace Applications
Accuracy+/-3% CW, +/-6% CCW
Drive Size3/8 in
FinishFull Polished
Graduations5 in-lb
Handle TypeKnurled/Screw-On End Cap
Head TypeRatcheting
Indicator TypeAudible Click
MaterialSteel
Minimum Number of Cycles50000
Overall Length15-1/2 in
Rotation TypeCW/CCW
SeriesC Series
SettingAutomatic Reset
Specifications MetASME B107.300-2010, TO33K6-4-2193-1
Torque Range200 to 1000 in-lb
Additional Information
Standards/ApprovalASME B107.14
Country of OriginUS
