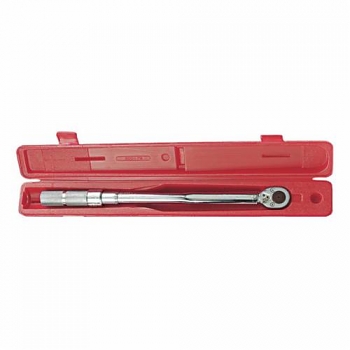

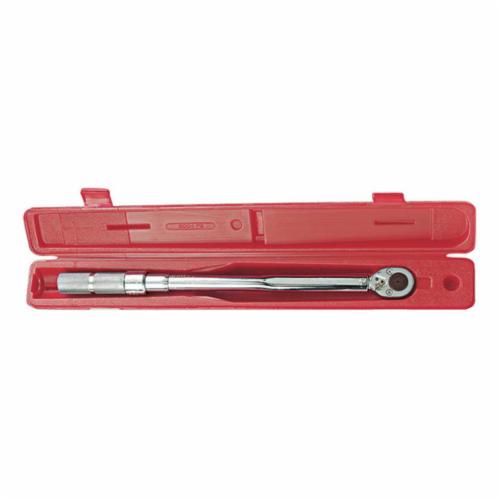

Proto PRO J6020AB

Proto J6020AB Micrometer Torque Wrench, 3/4 in Drive, 120 to 600 ft-lb, Ratcheting Head, 2 ft-lb Graduation, 41 in OAL, ASME B107.14M

Invoice description: Wrench Trq 3/4 120-600 F T#s Torque Wrench 3/4dr

UPC: 662679134587
UNSPSC: 27111715
Manufacturer PN: J6020AB
$1,328.15 EA
Factory Order
Estimated to ship in 15 days
QTY:


Proto Micrometer Torque Wrench, 3/4 in Drive, 120 to 600 ft-lb, Ratcheting, Graduations: 2 ft-lb, 41 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Audible Click Indicator, Ergonomic, ASME B107.14M, Steel, Full Polished

  • Features

  • Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
  • Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
  • 45-tooth gear/floating pawl design for small 6.8 in arc swing
  • 13% smaller head for access in tight work areas
  • Reversing lever designed for quick, 1-hand operation

Specifications

ApplicationMilitary and Aerospace Applications
Accuracy+/-3% CW, +/-6% CCW
Drive Size3/4 in
FinishFull Polished
Graduations2 ft-lb
Handle TypeErgonomic
Head TypeRatcheting
Indicator TypeAudible Click
MaterialSteel
Overall Length41 in
Rotation TypeCW/CCW
Specifications MetASME B107.14M
Torque Range120 to 600 ft-lb

Additional Information

Standards/ApprovalASME B107.14
Country of OriginUS
