Sandvik Coromant SANC 6532091

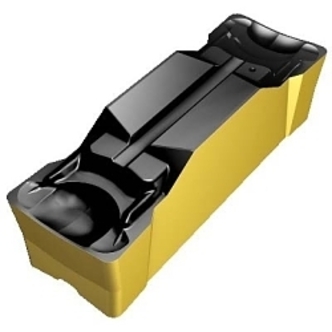

Sandvik Coromant 6532091 CoroCut 1-2 Medium Feed Grooving Insert, ANSI Code: N123G2-0318-0003-GM 4325, N123 Insert, G2 Insert, Neutral Cutting, 1/8 in W Cutting, Manufacturers Grade: 4325, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K
Invoice description:
Ins Grv N123g2-0318-0003 -gm 4325
Factory Order
Sandvik Coromant Grooving Insert, Medium Feed, Series: CoroCut 1-2, N123 Insert, G2 Insert, 1/8 in Cutting Width, 0.709 in Maximum Depth of Cut, 0 deg Lead Angle, GM Chipbreaker, 0.012 in Corner Radius, 0.1693 in Thickness, 1/8 in Width, 0.7685 in Length, Manufacturers Grade: 4325, ANSI Code: N123G2-0318-0003-GM 4325, ISO Code: N123G2-0318-0003-GM 4325, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K
Features
- Versatile parting and grooving
- Secure and efficient machining
- Cost efficiency with two edges
Specifications
ApplicationParting, External Grooving, Face Grooving, Internal Grooving, Profiling, Hard Part Turning and Roughing to Finishing
ANSI CodeN123G2-0318-0003-GM 4325
ChipbreakerGM
Corner Radius0.012 in
Cutting DirectionNeutral
Cutting Width1/8 in
FinishCVD-TiCN+Al2O3+TiN Coated
Insert SizeG2
Insert StyleN123
ISO CodeN123G2-0318-0003-GM 4325
Lead Angle0 deg
Length0.7685 in
Manufacturers Grade4325
MaterialCarbide
Material GradeK
Maximum Depth of Cut0.709 in
SeriesCoroCut 1-2
Thickness0.1693 in
TypeMedium Feed
Width1/8 in
Additional Information
Country of OriginUS
