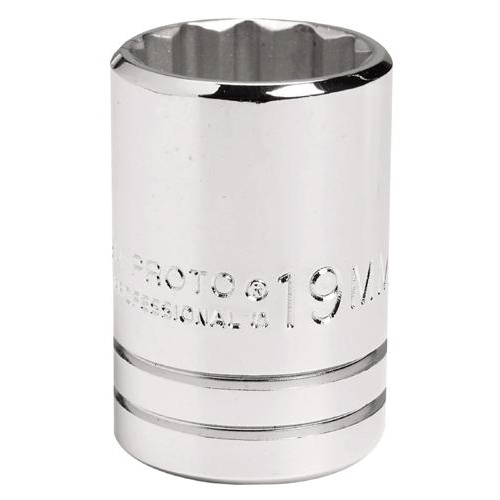

Proto PRO J5419M

Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Metric, Square Drive, 1/2 in Drive, 19 mm Socket, 36.4 mm Overall Length, 17.5 mm Opening Depth, 26 mm Drive End Width, 26 mm Socket End Width, Ball Locking, 12 Points, 21.6 mm Bolt Clearance Depth, Alloy Steel, Full Polished

• Features

• The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• The TorquePlus design allows more torque to be put on the fastener while reducing fastener rounding and allows the user to more easily turn worn, rounded or rusted fasteners

Specifications

Additional Information

Documents

• Catalog
