Proto PRO J5418H

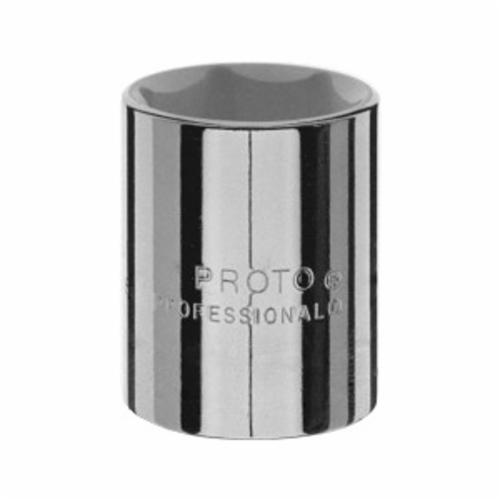

Proto TorquePlus J5418H Standard Length Socket, Imperial, 1/2 in Square Drive, 9/16 in
Factory Order
Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 9/16 in Socket, 1-1/2 in Overall Length, 23/64 in Opening Depth, 55/64 in Drive End Width, 13/16 in Socket End Width, Ball Locking, 12 Points, 53/64 in Bolt Clearance Depth, Alloy Steel, Full Polished
Features
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus design allows more torque to be put on the fastener while reducing fastener and allows the user to more easily turn worn, rounded or rusted fasteners
Specifications
ApplicationFor use on stubborn or damaged fasteners and also on fasteners made from soft materials
Bolt Clearance Depth53/64 in
Drive End Width55/64 in
Drive Size1/2 in
Drive TypeSquare
FinishFull Polished
Impact RatedNo
Locking TypeBall
MaterialAlloy Steel
Measurement SystemImperial
Number of Points12
Opening Depth23/64 in
Overall Length1-1/2 in
Socket End Width13/16 in
Socket Size9/16 in
TypeStandard Length
