Proto PRO J5418

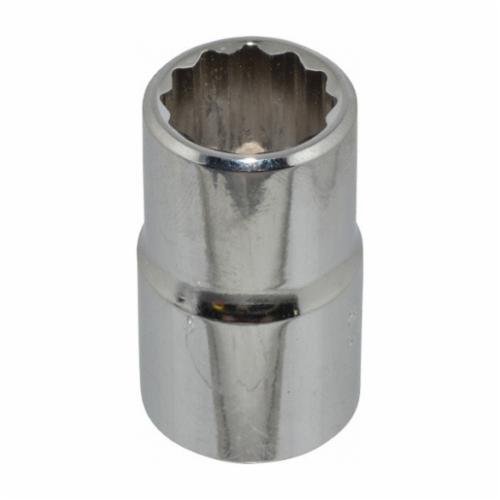

Proto TorquePlus J5418 Standard Length Socket, Imperial, 1/2 in Square Drive, 9/16 in
Invoice description:
Socket 9/16" 1/2"dr 12pt
In stock
(12)
Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 9/16 in Socket, 1-1/2 in Overall Length, 23/64 in Opening Depth, 55/64 in Drive End Width, 51/64 in Socket End Width, Ball Locking, 12 Points, 1-11/64 in Bolt Clearance Depth, Alloy Steel, Full Polished
Features
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus design allows more torque to be put on the fastener while reducing fastener and allows the user to more easily turn worn, rounded or rusted fasteners
Specifications
ApplicationFor use on stubborn or damaged fasteners and also on fasteners made from soft materials
Bolt Clearance Depth1-11/64 in
Drive End Width55/64 in
Drive Size1/2 in
Drive TypeSquare
FinishFull Polished
Impact RatedNo
Locking TypeBall
MaterialAlloy Steel
Measurement SystemImperial
Number of Points12
Opening Depth23/64 in
Overall Length1-1/2 in
Socket End Width51/64 in
Socket Size9/16 in
TypeStandard Length
Additional Information
Standards/ApprovalANSI B107.1|ASME B107.110-2012|AS954E S3.8.1|Feder
Country of OriginUS
