Proto PRO J5214MH

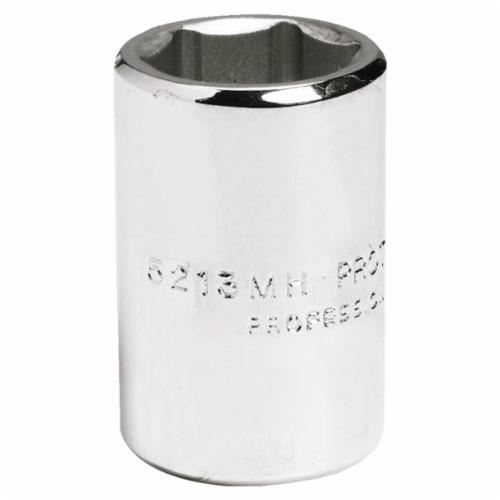

Proto TorquePlus J5214MH Standard Length Socket, Metric, 3/8 in Square Drive, 14 mm
Invoice description:
Socket 14mm 3/8"dr 6pt
UPC: 662679161446
UNSPSC:
27111704
Manufacturer PN: J5214MH
$7.80 EA
Factory Order
Estimated to ship in 26 days
Estimated to ship in 26 days
Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Metric, Square Drive, 3/8 in Drive, 14 mm Socket, 28.5 mm Overall Length, 12 mm Opening Depth, 19.8 mm Drive End Width, 19.8 mm Socket End Width, Ball Locking, 6 Points, 17.3 mm Bolt Clearance Depth, Alloy Steel, Full Polished
Features
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
Specifications
ApplicationFor use on stubborn or damaged fasteners and also on fasteners made from soft materials
Bolt Clearance Depth17.3 mm
Drive End Width19.8 mm
Drive Size3/8 in
Drive TypeSquare
FinishFull Polished
Impact RatedNo
Locking TypeBall
MaterialAlloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth12 mm
Overall Length28.5 mm
Socket End Width19.8 mm
Socket Size14 mm
TypeStandard Length
Additional Information
Standards/ApprovalASME B107.110-2012|ASME B107.5M
Country of OriginUS
