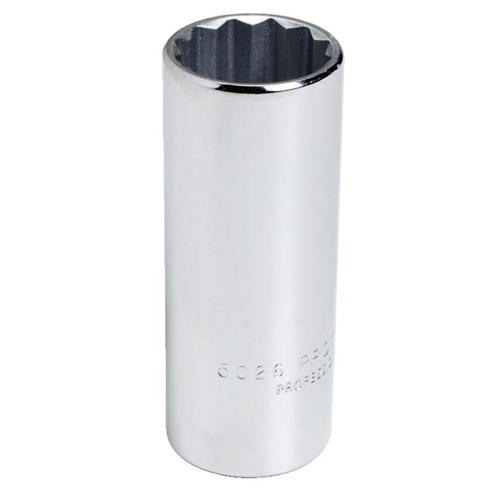

Proto PRO J5026

Proto TorquePlus Socket, Deep Length, No Impact Rated, Measurement System: Imperial, Square Drive, 3/8 in Drive, 13/16 in Socket, 2-3/4 in Overall Length, 43/64 in Opening Depth, 1-5/64 in Drive End Width, 1-5/64 in Socket End Width, Ball Locking, 12 Points, 2-5/16 in Bolt Clearance Depth, Alloy Steel, Full Polished

• Features

• The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
• The TorquePlus design allows more torque to be put on the fastener while reducing fastener rounding
