Proto PRO J47A

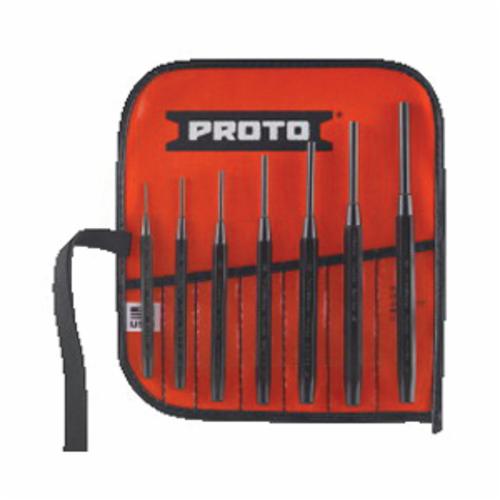

Proto J47A 2-Piece Design Drive Pin Punch Set, Drive Pin Style, 1/16 to 1/4 in Punch, 7 Punches, 7 Pieces
Invoice description:
Set Pin Punch 7pc 1/16-1/4"
UPC: 662679010218
UNSPSC:
27111558
Manufacturer PN: J47A
$67.68 EA
Factory Order
Estimated to ship in 14 days
Estimated to ship in 14 days
Proto Pin Punch Set, 2-Piece Design Drive, 1/16 to 1/4 in Punch, 6-3/8 in Overall Length, 7 Punches, 7 Piece, Drive Pin, Set Contents: J25TR31C 7 Pockets Tool Roll Canvas Tool Pouches, J473/8X3/16 Pin Punch, J475/16X1/8 Pin Punch, J471/2X1/4 Pin Punch, J471/4X1/16 Pin Punch, J471/4X3/32 Pin Punch, J475/16X5/32 Pin Punch and J477/16X7/32 Pin Punch, Corrosion-Resistant: Yes, S2 Steel, Black Oxide
Features
- Made from S2 steel and specially heat treated for greater strength and durability
- 2-piece design allows the tip to be hard for durability while allowing it to be produced straight to help prevent binding
- Modified parabolic striking end to help reduce mushrooming and chipping
- Black oxide finish to help prevent rust corrosion, extending tool life and performance
- A polished identification panel on one of the flats is marked with the tool number and size in a black inlay
- Set offers a wide range of sizes to handle a variety of jobs
Specifications
ApplicationFor greater resistance to mushrooming and chipping
Corrosion-ResistantYes
FinishBlack Oxide
MaterialS2 Steel
Number of Pieces7
Number of Punches7
Overall Length6-3/8 in
Punch Size1/16 to 1/4 in
Set ContentsJ25TR31C 7 Pockets Tool Roll Canvas Tool Pouches, J473/8X3/16 Pin Punch, J475/16X1/8 Pin Punch, J471/2X1/4 Pin Punch, J471/4X1/16 Pin Punch, J471/4X3/32 Pin Punch, J475/16X5/32 Pin Punch and J477/16X7/32 Pin Punch
StyleDrive Pin
Type2-Piece Design Drive
Additional Information
Includes(1) Canvas Tool Pouch and (7) Punches
WarrantyLifetime
Standards/ApprovalASME B107.410
Country of OriginUS
