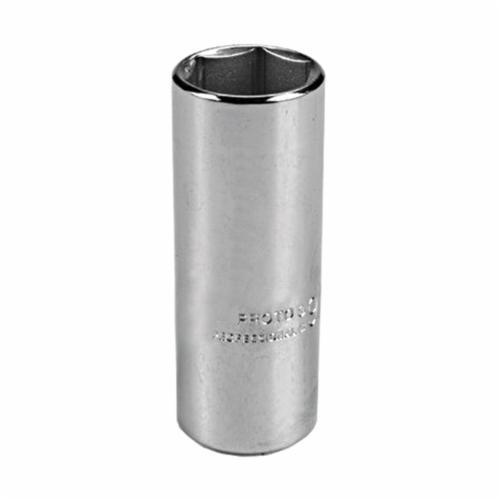

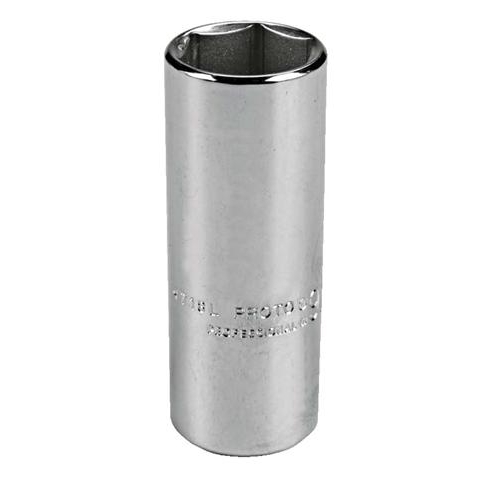

Proto PRO J4710L

Proto TorquePlus Socket, Deep Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1/4 in Drive, 5/16 in Socket, 2 in Overall Length, 3/8 in Opening Depth, 15/32 in Drive End Width, 15/32 in Socket End Width, Ball Locking, 6 Points, 1-1/2 in Bolt Clearance Depth, Alloy Steel, Full Polished

• Features

• The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fastener
• TorquePlus design allows more torque to be put on the fastener while reducing fastener rounding
