Dixon DIXV DC2042

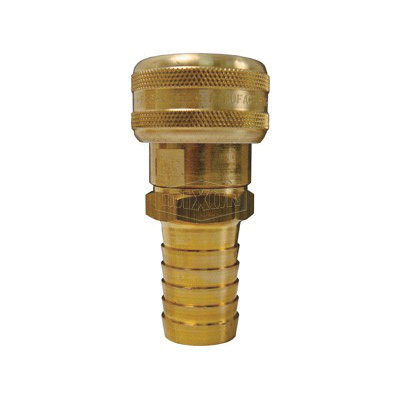

Dixon® DC2042 Air Chief Industrial Quick Disconnect Coupler, 1/4 in Nominal, Quick Disconnect Coupler x Hose Barb, 300 psi Pressure, Brass, Domestic

Invoice description: Industrial Coupler B

UPC: 089109796038
UNSPSC: 40141734
Manufacturer PN: DC2042
$15.34 EACH
Factory Order
Estimated to ship in 7 days
QTY:


Dixon® Quick Disconnect Coupler, Air Chief Industrial, 1/4 in Nominal, Quick Disconnect Coupler x Hose Barb End Style, 2-1/2 in Length, 300 psi Pressure, -40 to 250 deg F, Brass, 7/8 in OD, Domestic

  • Features

  • Couplers shut-off when disconnected
  • Semi-automatic pull sleeve to connect
  • For air service only
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death

Specifications

TypeAir Chief Industrial
Nominal Size1/4 in
End StyleQuick Disconnect Coupler x Hose Barb
Length2-1/2 in
Pressure Rating300 psi

Additional Information

Country of OriginUS
