Proto PRO J1225MASD

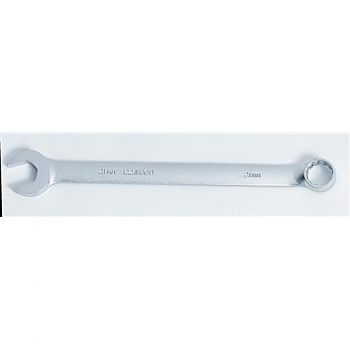

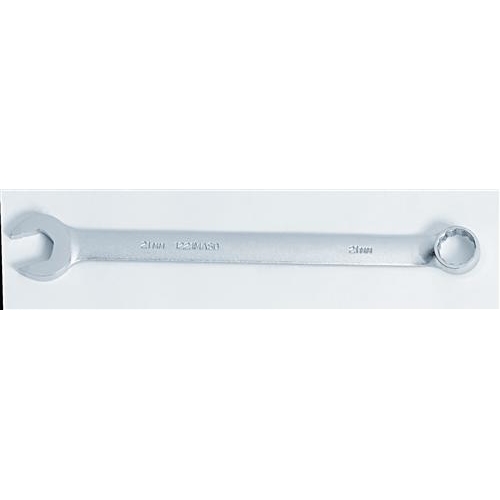

Proto TorquePlus J1225MASD Anti-Slip Design Combination Wrench, Metric, 25 mm, 12 Points, 15 deg Offset, 14 in OAL, Alloy Steel, Satin, ASME B107.100

Invoice description: Wrench Comb 25mm 12pt Long Pattern Satin

UPC: 662679073299
UNSPSC: 27111713
Manufacturer PN: J1225MASD
$49.37 EA
Factory Order
Estimated to ship in 14 days
QTY:


Proto TorquePlus Combination Wrench, Anti-Slip Design, Measurement System: Metric, Spline Wrench, 25 mm Wrench Opening, 12 Points, 14 in Overall Length, 15 deg Offset, 50.8 mm Open End Width, 10.7 mm Open End Thickness, 36 mm Box End Width, 15.1 mm Box End Thickness, 15 deg Head, ASME B107.100 Specifications Met, 30.5 mm Throat Depth, Oval/Slip Resistant Grip/Straight Handle, Alloy Steel, Satin

  • Features

  • Satin finish provides corrosion resistance and a slip-resistant grip
  • 12 point box end allows for fine indexing, helping to improve speed and access
  • Fits 4, 6 and 12 point fasteners
  • Anti-slip design (ASD) open end
  • Box ends incorporate the TorquePlus system
  • Locking groove to help prevent slippage
  • Arched surface which spreads the force over a 400% larger contact area to help prolong life
  • No ribs or serrations to damage fasteners
  • Allows upto 15% more torque to be applied to the fastener
  • Reduces risk of fastener rounding

Specifications

Box End Thickness15.1 mm
Box End Width36 mm
Finish/CoatingSatin
Handle TypeOval/Slip Resistant Grip/Straight
Head Angle15 deg
MaterialAlloy Steel
Measurement SystemMetric
Number of Points12
Offset Angle15 deg
Open End Thickness10.7 mm
Open End Width50.8 mm
Overall Length14 in
Specifications MetASME B107.100
Throat Depth30.5 mm
TypeAnti-Slip Design
Wrench Opening25 mm
Wrench TypeSpline

Additional Information

Standards/ApprovalASME B107.100
Country of OriginUS
