Proto PRO J1221MASD

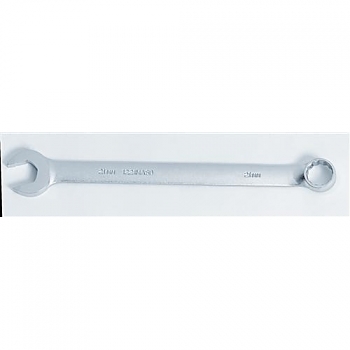

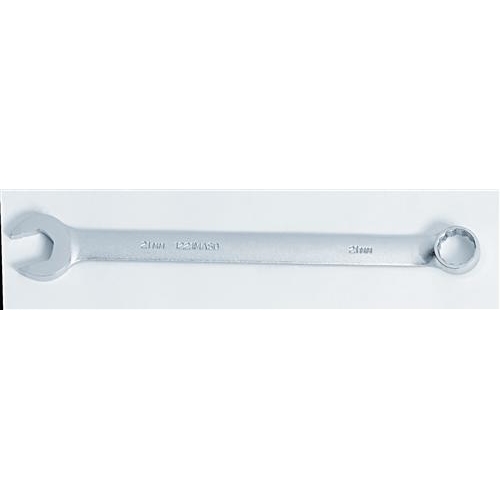

Proto TorquePlus J1221MASD Anti-Slip Design Combination Wrench, Metric, 21 mm, 12 Points, 15 deg Offset, 11 in OAL, Alloy Steel, Satin, ASME B107.100, ANSI B107.9

Invoice description: Wrench Comb 21mm 12pt Long Pattern Satin

UPC: 662679073251
UNSPSC: 27111713
Manufacturer PN: J1221MASD
$36.66 EA
Factory Order
Estimated to ship in 7 days
QTY:


Proto TorquePlus Combination Wrench, Anti-Slip Design, Measurement System: Metric, Spline Wrench, 21 mm Wrench Opening, 12 Points, 11 in Overall Length, 15 deg Offset, 42.9 mm Open End Width, 9.1 mm Open End Thickness, 30.1 mm Box End Width, 12.3 mm Box End Thickness, 15 deg Head, ASME B107.100, ANSI B107.9 Specifications Met, 25 mm Throat Depth, Oval/Slip Resistant Grip/Straight Handle, Alloy Steel, Satin

  • Features

  • Satin finish provides corrosion resistance and a slip-resistant grip
  • 12 point box end allows for fine indexing, helping to improve speed and access
  • Fits 4, 6 and 12 point fasteners
  • Anti-slip design (ASD) open end
  • Box ends incorporate the TorquePlus system
  • Locking groove to help prevent slippage
  • Arched surface which spreads the force over a 400% larger contact area to help prolong life
  • No ribs or serrations to damage fasteners
  • Allows upto 15% more torque to be applied to the fastener
  • Reduces risk of fastener rounding

Specifications

Box End Thickness12.3 mm
Box End Width30.1 mm
Finish/CoatingSatin
Handle TypeOval/Slip Resistant Grip/Straight
Head Angle15 deg
MaterialAlloy Steel
Measurement SystemMetric
Number of Points12
Offset Angle15 deg
Open End Thickness9.1 mm
Open End Width42.9 mm
Overall Length11 in
Specifications MetASME B107.100, ANSI B107.9
Throat Depth25 mm
TypeAnti-Slip Design
Wrench Opening21 mm
Wrench TypeSpline

Additional Information

Standards/ApprovalASME B107.100
Country of OriginUS
