Proto PRO J1220ASD

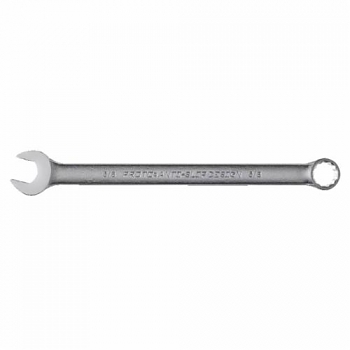

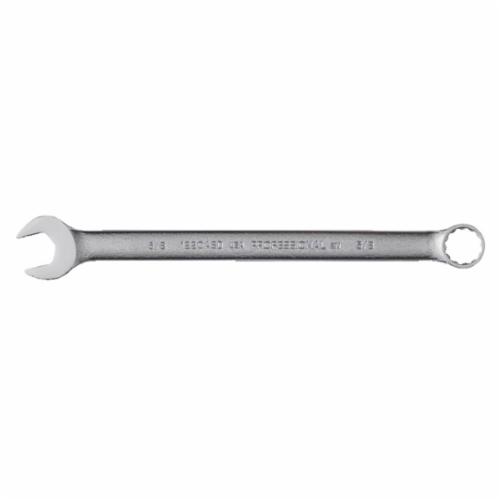

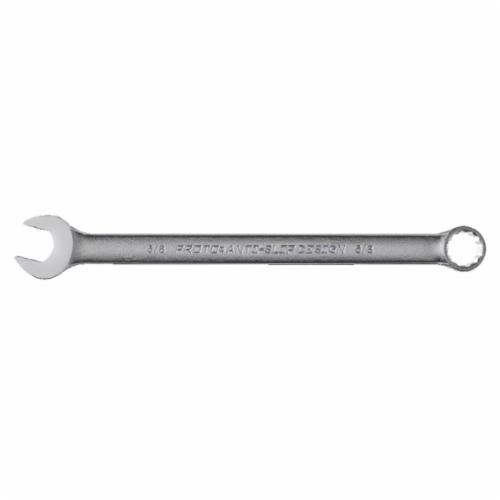

Proto TorquePlus J1220ASD Anti-Slip Design Combination Wrench, 5/8 in Wrench, 12 Points, 15 deg Offset, 9-1/2 in OAL, Alloy Steel, Satin, ASME B107.100
Invoice description:
Wrench Comb 5/8" 12pt Long Pattern Satin
In stock
(1)
Proto TorquePlus Combination Wrench, Anti-Slip Design, Measurement System: Imperial, Spline Wrench, 5/8 in Wrench Opening, 12 Points, 9-1/2 in Overall Length, 15 deg Offset, 1-21/64 in Open End Width, 19/64 in Open End Thickness, 15/16 in Box End Width, 13/32 in Box End Thickness, 15 deg Head, Specifications Met: ASME B107.100, 3/4 in Throat Depth, Slip-Resistant/Straight Handle, Alloy Steel, Satin
Features
- Satin finish provides corrosion resistance and a slip resistant grip
- 12 point box end allows for fine indexing, helping to improve speed and access, fits 4, 6 and 12 point fasteners
- Anti-slip design (ASD) open end
- Box ends incorporate the TorquePlus system
- Locking groove to help prevent slippage
- Arched surface which spreads the force over a 400% larger contact area to help prolong life
- No ribs or serrations to damage fasteners
- Allows upto 15% more torque to be applied to the fastener
- Reduces risk of fastener rounding
- Provides a better grip on worn, rounded fasteners
Specifications
Box End Thickness13/32 in
Box End Width15/16 in
Finish/CoatingSatin
Handle TypeSlip-Resistant/Straight
Head Angle15 deg
MaterialAlloy Steel
Measurement SystemImperial
Number of Points12
Offset Angle15 deg
Open End Thickness19/64 in
Open End Width1-21/64 in
Overall Length9-1/2 in
Specifications MetASME B107.100
Throat Depth3/4 in
TypeAnti-Slip Design
Wrench Opening5/8 in
Wrench TypeSpline
Additional Information
Standards/ApprovalASME B107.100
Country of OriginUS
