Proto PRO J1210MASD

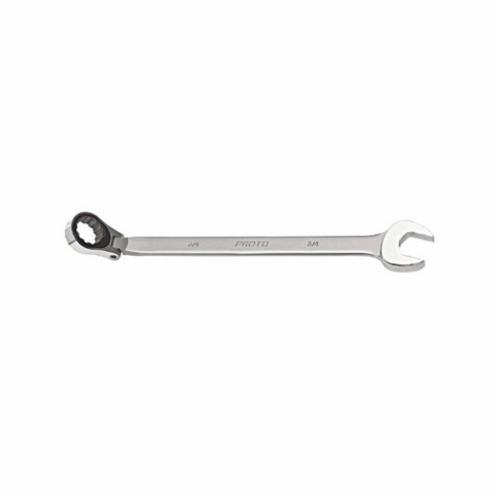

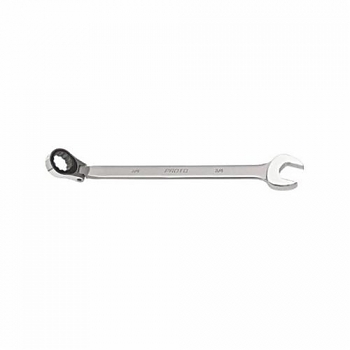

Proto TorquePlus J1210MASD Anti-Slip Design Combination Wrench, 10 mm Wrench, 12 Points, 15 deg Offset, 5 in OAL, Alloy Steel, Satin, ASME B107.100, ANSI B107.9
Invoice description:
Wrench Comb 10mm 12pt Long Pattern Satin
In stock
(13)
Proto TorquePlus Combination Wrench, Anti-Slip Design, Measurement System: Metric, Spline Wrench, 10 mm Wrench Opening, 12 Points, 5 in Overall Length, 15 deg Offset, 22.2 mm Open End Width, 5.6 mm Open End Thickness, 16.5 mm Box End Width, 7.9 mm Box End Thickness, 15 deg Head, Specifications Met: ASME B107.100, ANSI B107.9, 12.3 mm Throat Depth, Oval/Slip Resistant Grip/Straight Handle, Alloy Steel, Satin
Features
- Satin finish provides corrosion resistance and a slip resistant grip
- 12 point box end allows for fine indexing, helping to improve speed and access, fits 4, 6 and 12 point fasteners
- Anti-slip design (ASD) open end
- Box ends incorporate the TorquePlus system
- Locking groove to help prevent slippage
- Arched surface which spreads the force over a 400% larger contact area to help prolong life
- No ribs or serrations to damage fasteners
- Allows upto 15% more torque to be applied to the fastener
- Reduces risk of fastener rounding
- Provides a better grip on worn, rounded fasteners
Specifications
Box End Thickness7.9 mm
Box End Width16.5 mm
Finish/CoatingSatin
Handle TypeOval/Slip Resistant Grip/Straight
Head Angle15 deg
MaterialAlloy Steel
Measurement SystemMetric
Number of Points12
Offset Angle15 deg
Open End Thickness5.6 mm
Open End Width22.2 mm
Overall Length5 in
Specifications MetASME B107.100, ANSI B107.9
Throat Depth12.3 mm
TypeAnti-Slip Design
Wrench Opening10 mm
Wrench TypeSpline
Additional Information
Country of OriginUS
