Proto PRO J07513SL

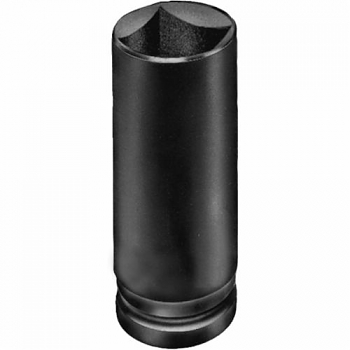

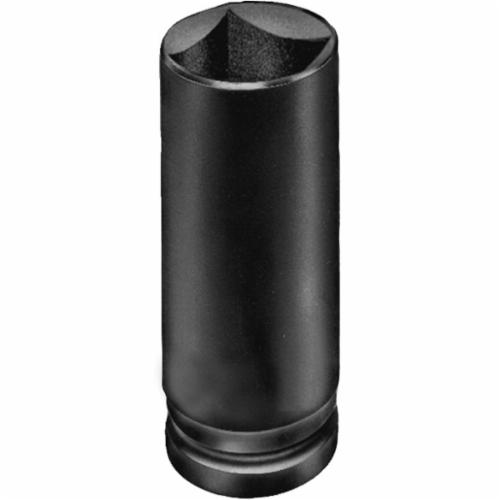

Proto J07513SL Deep Standard Length Socket, Imperial, 3/4 in Square Drive, 13/16 in

Invoice description: Socket Imp 13/16" 3/4"dr 4pt Deep

UPC: 662679360276
UNSPSC: 27111704
Manufacturer PN: J07513SL
$33.25 EA
Factory Order
Estimated to ship in 12 days
QTY:


Proto Socket, Deep Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 13/16 in Socket, 4 in Overall Length, 43/64 in Opening Depth, 1-5/8 in Drive End Width, 1-5/8 in Socket End Width, 4 Points, 3-1/16 in Bolt Clearance Depth, Alloy Steel, Black Oxide

  • Features

  • Tight tolerances for snug fit on fastener
  • Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
  • Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
  • Impact sockets are used wherever powered drive tools are used to install or remove fasteners
  • Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
  • Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls

Specifications

Bolt Clearance Depth3-1/16 in
Drive End Width1-5/8 in
Drive Size3/4 in
Drive TypeSquare
FinishBlack Oxide
Impact RatedYes
MaterialAlloy Steel
Measurement SystemImperial
Number of Points4
Opening Depth43/64 in
Overall Length4 in
Socket End Width1-5/8 in
Socket Size13/16 in
TypeDeep Standard Length

Additional Information

Standards/ApprovalASME B107.110-2012/B107.2
Country of OriginUS
