MARXMAN MOR 80209

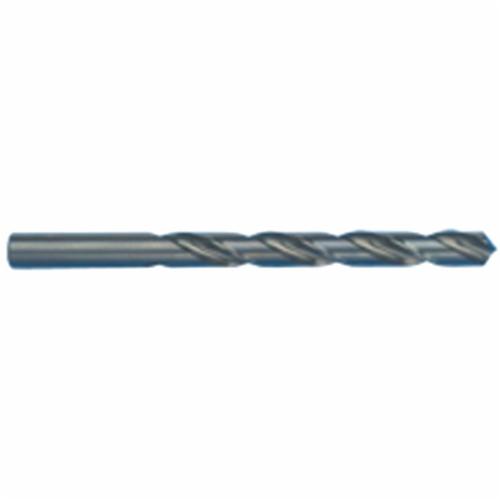

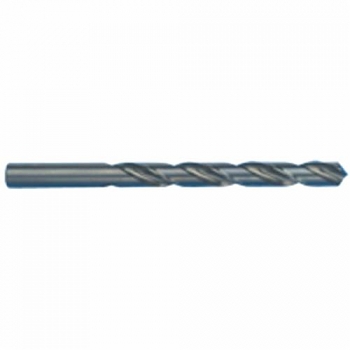

MARXMAN 80209 330 General Purpose Jobber Length Drill Bit, #9 Drill - Wire, 0.196 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide
Invoice description:
Bit Drill #9 Jl Blk Hss 118'pt Made In Usa
UPC: 683420802098
UNSPSC:
23241606
Manufacturer PN: 80209
$2.28 EA
Factory OrderEstimated to ship in 14 days
MARXMAN Jobber Length Drill Bit, General Purpose, Series: 330, Imperial, #9 Drill - Wire, 0.196 in Drill - Decimal Inch, 3-5/8 in Overall Length, 2-7/16 in Cutting Depth, Standard Flute, 2-7/16 in Flute Length, 0.196 in Shank, Straight Shank, 118 deg Point, Standard Point, HSS Cutting Edge, No Through Coolant, HSS, Black Oxide, Applicable Materials: Aluminum and Non-Ferrous Metals
Features
- Black oxide surface treatment increases wear resistance, reduces galling and chip welding, improves chip flow and increases drill lubricant retention
Specifications
ApplicationFor drilling wide variety of materials
Applicable MaterialsAluminum and Non-Ferrous Metals
Cutting Depth2-7/16 in
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.196 in
Drill Size - Wire#9
FinishBlack Oxide
Flute Length2-7/16 in
Flute TypeStandard
MaterialHSS
Overall Length3-5/8 in
Point Angle118 deg
Point TypeStandard
Series330
Shank Size0.196 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose
Additional Information
Standards/ApprovalDIN 338
Country of OriginUS
