MORSE MOR 51032

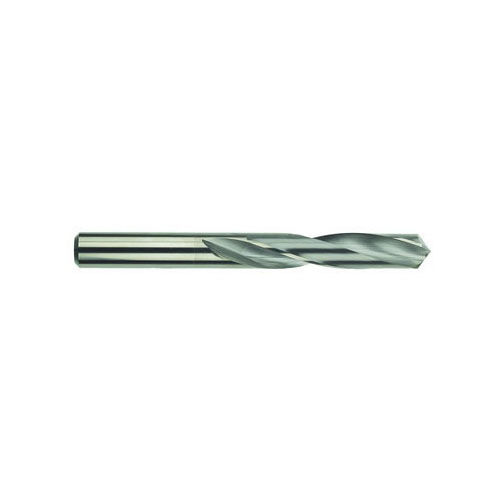

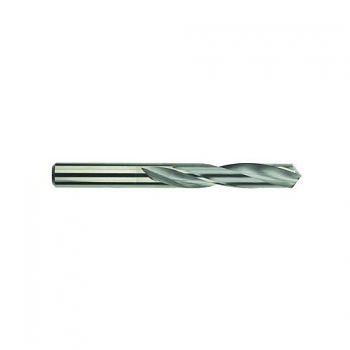

MORSE 51032 5374 Standard Length Jobber Length Drill Bit, 1/16 in Drill - Fraction, 0.0625 in Drill - Decimal Inch, 118 deg Point, Solid Carbide, Bright
Invoice description:
1/16 118d Carb Jobber Dr Ill
In stock
(10)
MORSE Jobber Length Drill Bit, Standard Length, Series: 5374, Imperial, 1/16 in Drill - Fraction, 0.0625 in Drill - Decimal Inch, 1-7/8 in Overall Length, 3/4 in Cutting Depth, Standard Flute, 3/4 in Flute Length, 1/16 in Shank, Straight Shank, 118 deg Point, Split Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, No Through Coolant, Solid Carbide, Bright, Applicable Materials: Aluminum, Cast Iron, Non-Ferrous Alloy and Plastic
Features
- Solid carbide offer excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life
Specifications
ApplicationFor drilling in easily machined materials
Applicable MaterialsAluminum, Cast Iron, Non-Ferrous Alloy and Plastic
Cutting Depth3/4 in
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.0625 in
Drill Size - Fraction1/16 in
FinishBright
Flute Length3/4 in
Flute TypeStandard
MaterialSolid Carbide
Overall Length1-7/8 in
Point Angle118 deg
Point TypeSplit
Series5374
Shank Size1/16 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeStandard Length
Additional Information
Country of OriginUS
