MORSE MOR 11481

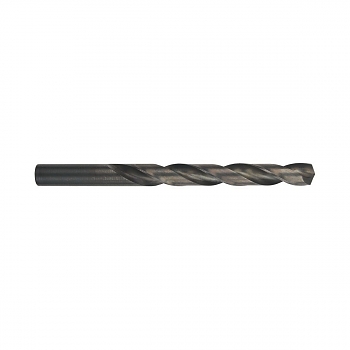

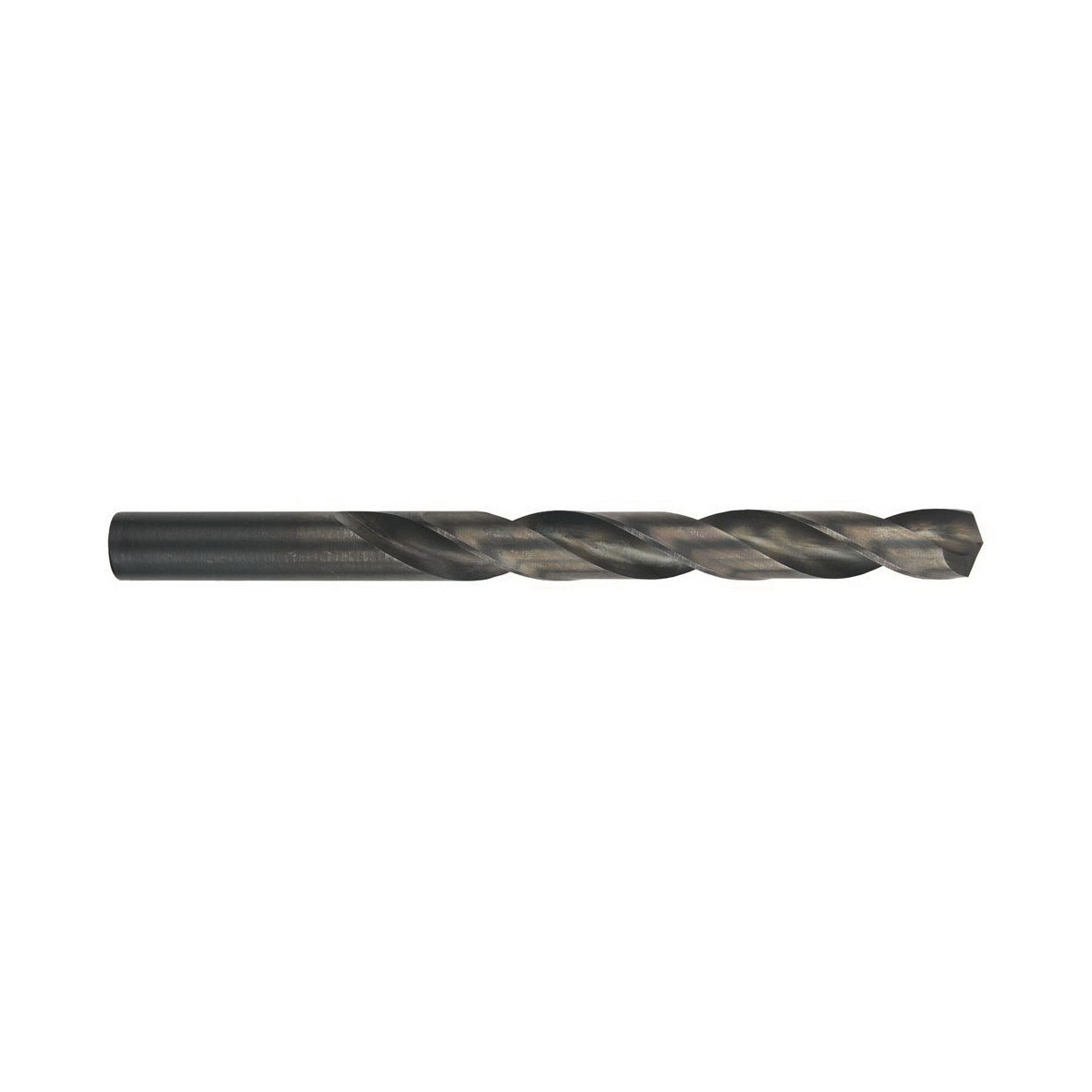

MORSE 11481 1330 General Purpose Jobber Length Drill Bit, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide

Invoice description: Bit Drill Hss 13/32 Jl Blk 118deg

UPC: 686125114817
UNSPSC: 23241606
Manufacturer PN: 11481
$7.50 EA
Factory Order
Estimated to ship in 7 days
QTY:


MORSE Jobber Length Drill Bit, General Purpose, Series: 1330, Imperial, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 5-1/4 in Overall Length, 3-7/8 in Cutting Depth, Standard Flute, 3-7/8 in Flute Length, 13/32 in Shank, Straight Shank, 118 deg Point, Standard Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black Oxide

  • Features

  • Black oxide surface treatment increases wear resistance, reduces galling and chip welding, improves chip flow and increase drill lubricant retention

Specifications

ApplicationFor drilling wide variety of materials
Cutting Depth3-7/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.4062 in
Drill Size - Fraction13/32 in
FinishBlack Oxide
Flute Length3-7/8 in
Flute TypeStandard
MaterialHSS
Overall Length5-1/4 in
Point Angle118 deg
Point TypeStandard
Series1330
Shank Size13/32 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose

Additional Information

Standards/ApprovalNSF Listed
Country of OriginUS
