Michigan Drill TRA 306 1-3/16

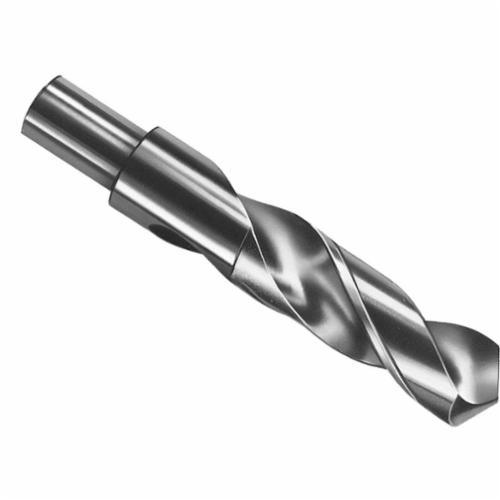

Michigan Drill 306 1-3/16 Screw Machine Drill, 1-3/16 in Drill - Fraction, 1.1875 in Drill - Decimal Inch, 3/4 in Shank, HSS

Invoice description: Taper Shank Drill 1-3/16

UPC: 728012102153
UNSPSC: 23241606
Manufacturer PN: 306 1-3/16
$110.78 EA
Factory Order
Estimated to ship in 7 days
QTY:


Michigan Drill Screw Machine Drill, Series: 306, 1-3/16 in Drill Size - Fraction, 1.1875 in Drill Size - Decimal Inch, 6 in Overall Length, 3 in Cutting Depth, Spiral Flute, 3 in Flute Length, 3/4 in Shank, Reduced/Round Shank, 118 deg Point, Conventional Point, Right Hand Cutting, HSS Cutting Edge, HSS, Applicable Materials: Steel

  • Features

  • HSS tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
  • Round shanks allow use with a wide variety of tool holding systems
  • When run in a counterclockwise direction (right hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging
  • Boring mill and screw machine

Specifications

Applicable MaterialsSteel
Cutting Depth3 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch1.1875 in
Drill Size - Fraction1-3/16 in
Flute Length3 in
Flute TypeSpiral
MaterialHSS
Overall Length6 in
Point Angle118 deg
Point TypeConventional
Series306
Shank Size3/4 in
Shank TypeReduced/Round

Additional Information

Country of OriginUS
