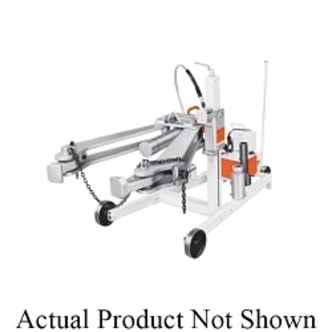

Power Team SPX PH1002-220

Power Team Universal Puller, 2-Jaw, Bare Tool Bare Tool/Kit, Series: PH Series, 100 ton Lifting Force, 12 to 36 in Stroke Length, 220 VAC, 50 Hz Power Source, 94 in L x 48 in W x 36 in H Dimensions

• Features

• Adjustable jaws mean they always pull on a flat surface
• Retaining chain holds jaws in place during positioning
• Grip-O-Matic feature means jaws grip progressively tighter as more pulling force is applied
• 100 ton hydraulic cylinder is single acting, spring return type with a maximum working pressure of 10000 psi (700 bar)
• Lifting bracket allows puller to be lifted if the workpiece center is more than 36 in (914 mm) off the floor
• Adjusting screw allows operator to move vertical position of the puller
• Spring loaded feature means Enforcer 100 will align itself on uneven pulls
• Hydraulic pump is a two stage, high pressure unit controlled by remote hand switch with 25 ft (7.6 m) cord
• Tow bar provides puller with plenty of mobility
• Pushing adapters have a diameter of 4-1/8 in and 2-1/2 in (105 and 63.5 mm)

Specifications

Additional Information

Documents

• Specification Sheet

• Line Drawing
