Power Team SPX 9599

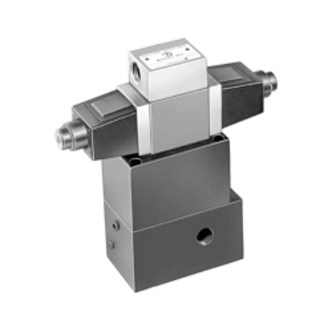

Power Team 9599 Pilot Operated Pump Mounted Solenoid Valve, 3/8 in NPTF Port, 10000 psi Pressure, 5 gpm Flow Rate, 3-Port/3-Way Ports/Ways, Aluminum Body
Factory Order
Power Team Solenoid Valve, Pilot Operated Pump Mounted, 3/8 in NPTF Port, 10000 psi Pressure, 5 gpm Flow Rate, 3-Port/3-Way Ports/Ways, Media: Oil, Solenoid Actuation, Aluminum Body, 8.3 in L x 2.5 in W x 6.2 in H Dimensions
Features
- Actuation - solenoid operated, 24 V, 50/60 Hz
- Functions - advance, hold and return positions
- When in advance, solenoid B is energized and oil goes from pump to cylinder through pressure port, in return position, solenoid A is energized and oil is directed from cylinder and pump to reservoir
- With both solenoids de-energized, in hold position, oil from pump is directed back to reservoir while oil is checked in cylinder, the Posi-Check feature holds load when shifting from advance to hold position
- 10000 psi (700 bar), 3/8 in ports, 5 gpm (19 L/min) maximum flow rate
Specifications
ApplicationFor use with single acting cylinder
Actuation TypeSolenoid
Body MaterialAluminum
Dimensions8.3 in L x 2.5 in W x 6.2 in H
Flow Rate5 gpm
MediaOil
Number of Ports/Ways3-Port/3-Way
Port Size3/8 in NPTF
Pressure Rating10000 psi
TypePilot Operated Pump Mounted
Line Drawing
