Power Team SPX 1027

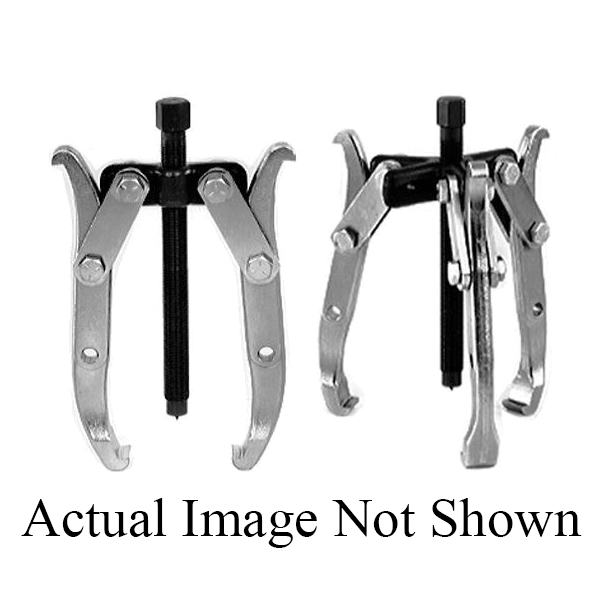

Power Team 1027 MP Series Mechanical Jaw Puller, 5 ton Capacity, 2/3 Jaws, Long Jaw, 5-1/2 in Max Reach, 7 in Max Spread

Invoice description: 2/3 Jaw Puller Manual 5 Ton Rev 2/3 Jaw Puller Manual 5ton Rev

UPC: 662536007733
UNSPSC: 27111712
Manufacturer PN: 1027
$418.58 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Mechanical Jaw Puller, Series: MP Series, 5 ton Capacity, 5-1/2 in Max Reach, 7 in Maximum Spread, 2/3 Jaws, Long Jaw, 3/8 in Upper, 3/4 in Lower Jaw Width, 5/16 in Upper, 1/4 in Lower Jaw Thickness, 9/16-20 x 6-15/16 in Screw, Yes Reversible, Alloy Steel

  • Features

  • Grip-O-Matic feature on all pullers
  • The harder the pull, the tighter the grip for removing gears, bearings and countless other press fitted parts
  • 2, 3 and 2/3-way combination pullers make it easy to select a specific puller for a specific application
  • Forged from high quality steel, heat treated and subjected to rigorous tests which exceed rated puller capacity
  • Alloy steel heads are forged for maximum strength
  • Forcing screw threads are rolled, not cut, this process creates a smoother and stronger thread
  • Heat treated alloy steel cross bolts for maximum shear strength
  • Machined puller jaw toes produce larger and stronger pulling toes

Specifications

ApplicationFor removing gears, bearings and countless other press fitted parts
Capacity5 ton
Jaw Thickness5/16 in Upper, 1/4 in Lower
Jaw TypeLong
Jaw Width3/8 in Upper, 3/4 in Lower
MaterialAlloy Steel
Max Reach5-1/2 in
Maximum Spread7 in
Number of Jaws2/3
ReversibleYes
Screw Size9/16-20 x 6-15/16 in
SeriesMP Series
