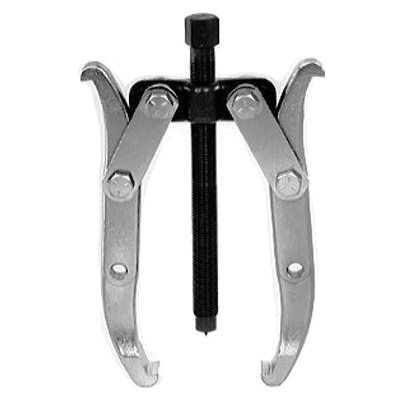

Power Team SPX 1024

Power Team 1024 MP Series Mechanical Jaw Puller, 5 ton Capacity, 2 Jaws, 3-1/4 in Max Reach, 6 in Max Spread

Invoice description: 2 Jaw Puller 5 Tonrev 2 Jaw Puller 5 Tonrev

UPC: 662536007474
UNSPSC: 27111712
Manufacturer PN: 1024
$221.74 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Mechanical Jaw Puller, Series: MP Series, 5 ton Capacity, 3-1/4 in Max Reach, 6 in Maximum Spread, 2 Jaws, 3/8 in Upper, 3/4 in Lower Jaw Width, 15/16 in Upper, 1/4 in Lower Jaw Thickness, 9/16-20 x 6-15/16 in Screw, Yes Reversible, Alloy Steel

  • Features

  • Grip-O-Matic feature on all pullers
  • The harder the pull, the tighter the grip for removing gears, bearings and countless other press fitted parts
  • 2, 3 and 2/3-way combination pullers make it easy to select a specific puller for a specific application
  • Forged from high quality steel, heat treated and subjected to rigorous tests which exceed rated puller capacity
  • Alloy steel heads are forged for maximum strength
  • Forcing screw threads are rolled, not cut, this process creates a smoother and stronger thread
  • Heat treated alloy steel cross bolts for maximum shear strength
  • Machined puller jaw toes produce larger and stronger pulling toes

Specifications

ApplicationFor removing gears, bearings and countless other press fitted parts
Capacity5 ton
Jaw Thickness15/16 in Upper, 1/4 in Lower
Jaw Width3/8 in Upper, 3/4 in Lower
MaterialAlloy Steel
Max Reach3-1/4 in
Maximum Spread6 in
Number of Jaws2
ReversibleYes
Screw Size9/16-20 x 6-15/16 in
SeriesMP Series

Additional Information

Standards/ApprovalFederal Specification GGG-P-00781-D
