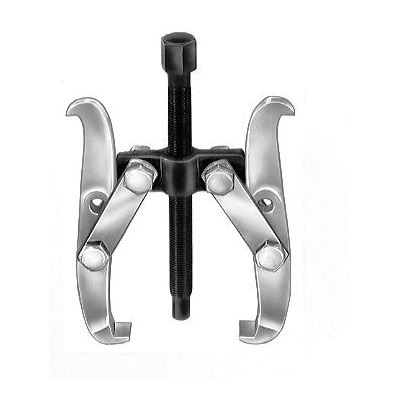

Power Team SPX 1022

Power Team 1022 MP Series Mechanical Jaw Puller, 2 ton Capacity, 2 Jaws, 3-1/4 in Max Reach, 4 in Max Spread

Invoice description: 2 Jaw Puller 2 Ton Rev 2 Jaw Puller 2 Ton Rev

UPC: 662536007313
UNSPSC: 27111712
Manufacturer PN: 1022
$177.15 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Mechanical Jaw Puller, Series: MP Series, 2 ton Capacity, 3-1/4 in Max Reach, 4 in Maximum Spread, 2 Jaws, 1/4 in Upper, 1/2 in Lower Jaw Width, 3/16 in Upper, 1/8 in Lower Jaw Thickness, 3/8-24 x 4-7/8 in Screw, Yes Reversible, Alloy Steel

  • Features

  • Grip-O-Matic feature on all pullers
  • The harder the pull, the tighter the grip for removing gears, bearings and countless other press fitted parts
  • 2, 3 and 2/3-way combination pullers make it easy to select a specific puller for a specific application
  • Forged from high quality steel, heat treated and subjected to rigorous tests which exceed rated puller capacity
  • Alloy steel heads are forged for maximum strength
  • Forcing screw threads are rolled, not cut, this process creates a smoother and stronger thread
  • Heat treated alloy steel cross bolts for maximum shear strength
  • Machined puller jaw toes produce larger and stronger pulling toes

Specifications

ApplicationFor removing gears, bearings and countless other press fitted parts
Capacity2 ton
Jaw Thickness3/16 in Upper, 1/8 in Lower
Jaw Width1/4 in Upper, 1/2 in Lower
MaterialAlloy Steel
Max Reach3-1/4 in
Maximum Spread4 in
Number of Jaws2
ReversibleYes
Screw Size3/8-24 x 4-7/8 in
SeriesMP Series
