Power Team SPX 1020

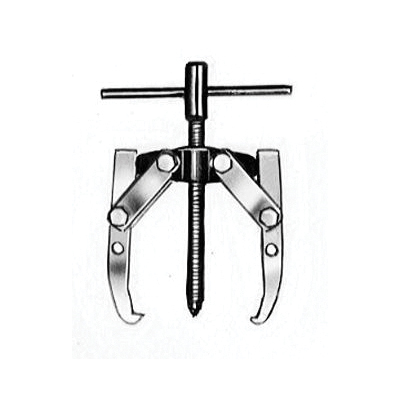

Power Team 1020 MP Series Mechanical Jaw Puller, 1 ton Capacity, 2 Jaws, 2-1/8 in Max Reach, 3-1/4 in Max Spread

Invoice description: 2 Jaw Puller 1 Ton 2 Jaw Puller 1 Ton

UPC: 662536007115
UNSPSC: 27111712
Manufacturer PN: 1020
$177.15 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Mechanical Jaw Puller, Series: MP Series, 1 ton Capacity, 2-1/8 in Max Reach, 3-1/4 in Maximum Spread, 2 Jaws, 1/4 in Jaw Width, 9/64 in Jaw Thickness, 5/16-24 x 3-7/8 in Screw, Alloy Steel

  • Features

  • Grip-O-Matic feature on all pullers
  • The harder the pull, the tighter the grip for removing gears, bearings and countless other press fitted parts
  • 2, 3 and 2/3-way combination pullers make it easy to select a specific puller for a specific application
  • Forged from high quality steel, heat treated and subjected to rigorous tests which exceed rated puller capacity
  • Alloy steel heads are forged for maximum strength
  • Forcing screw threads are rolled, not cut, this process creates a smoother and stronger thread
  • Heat treated alloy steel cross bolts for maximum shear strength
  • Machined puller jaw toes produce larger and stronger pulling toes

Specifications

ApplicationFor removing gears, bearings and countless other press fitted parts
Capacity1 ton
Jaw Thickness9/64 in
Jaw Width1/4 in
MaterialAlloy Steel
Max Reach2-1/8 in
Maximum Spread3-1/4 in
Number of Jaws2
Screw Size5/16-24 x 3-7/8 in
SeriesMP Series

Additional Information

Standards/ApprovalFederal Specification GGG-P-00781-D
